Submersible Seawater Pump for Offshore Platform

JINAOTE Submersible Seawater Pump for Offshore Platform is engineered for seawater lifting, injection, firefighting and marine water treatment applications. Manufactured with corrosion-resistant materials including SS316L and duplex stainless steel 2205/2507, it provides reliable underwater operation in offshore oil & gas platforms and coastal industrial facilities. OEM customization and project-based solutions are available.

Send Inquiry

Product Description

JINAOTE series Submersible Seawater Pump for Offshore Platform is specially developed for harsh marine environments where corrosion resistance, stable operation and long service life are required.

Compared with conventional water pumps, offshore seawater pumps need to withstand continuous exposure to saltwater, marine organisms and complex operating conditions. Our pumps are manufactured with stainless steel and duplex stainless steel materials to ensure reliable performance in seawater lifting, seawater injection, offshore firefighting systems and coastal water treatment projects.

Submersible Seawater Pump for Offshore Platform

The size of our Submersible Seawater Pump for Offshore Platform is from 10inch to 20inch. The materials can be SS316, ss316l, super duplex stainless steel2205/2507, bronze and others that you want.

Our Pump have special design:

1.Internal waterway facilitates motor heat dissipation;
2.Special specifications of filter screen to prevent barnacles from entering the water inlet;
3.Different materials for the cable;

Corrosion Resistant Materials for Long Service Life

To adapt to different seawater conditions, JINAOTE pumps can be manufactured with various materials:

Material	Application Advantage
SS316	Suitable for general seawater applications
SS316L	Improved corrosion resistance and welding performance
Duplex Stainless Steel 2205	High strength and chloride corrosion resistance
Super Duplex 2507	Designed for severe marine environments
Bronze	Excellent seawater compatibility

Material selection can be customized according to seawater salinity, temperature and project requirements.

Specification

No.	Size inch	Flow m3/h	Head m	Outer diameter mm
1	8	10,20,32,40,50,63,80	16-800	200
2	10	50,63,80,100,125,140,150	20-600	250
3	12	160,180,200,220,240,280,320,370	19-464	300
4	14	300,350,400,450	23-252	350
5	16	300,350,400,450,500,550,600,650	10-245	400

Applications

Offshore Oil & Gas Platform

Used for:
● Seawater lifting systems
● Seawater injection systems
● Offshore firefighting systems

Coastal Industrial Facilities

Suitable for:
● Desalination plants
● Marine water intake
● Industrial cooling systems
● Coastal water treatment

Why you choose “JINAOTE” series Submersible Seawater Pump for Offshore Platform?

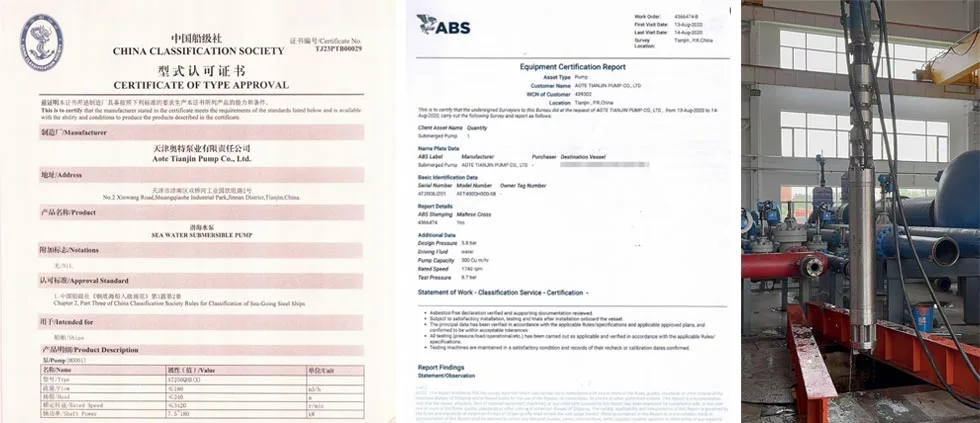

1.Certificate: ABS, DNV, CCS, CE, EAC;
2.We have Professional testing workshop ensures that every pump unit is qualified.
3.We can provide material reports for each component.
4.Customized products from different batches can be modified according to customer usage.

Submersible Seawater Pump for Offshore Platform

Why Choose JINAOTE?

22+ Years of Pump Manufacturing Experience

AOTE Tianjin Pump has specialized in submersible pump manufacturing for more than 22 years, providing standard models and customized solutions for marine and industrial applications.

Strict Quality Testing Before Delivery

Each pump unit is tested before shipment, including:
Performance testing
Insulation resistance testing
Pressure testing
Material inspection
Traceable Material Quality
Material certificates and inspection reports can be provided for key components to ensure reliability for offshore applications.
