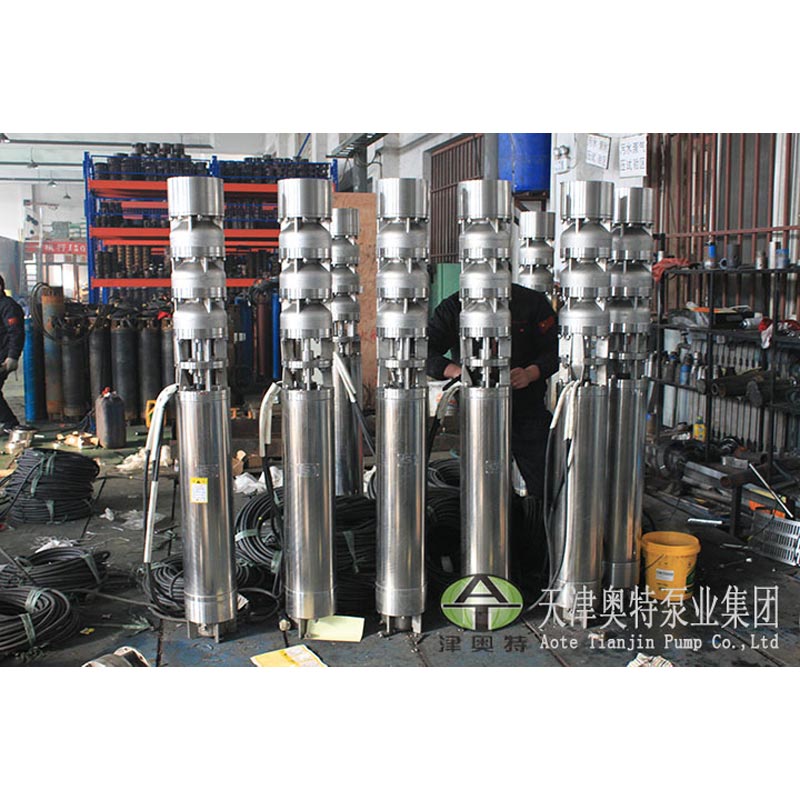

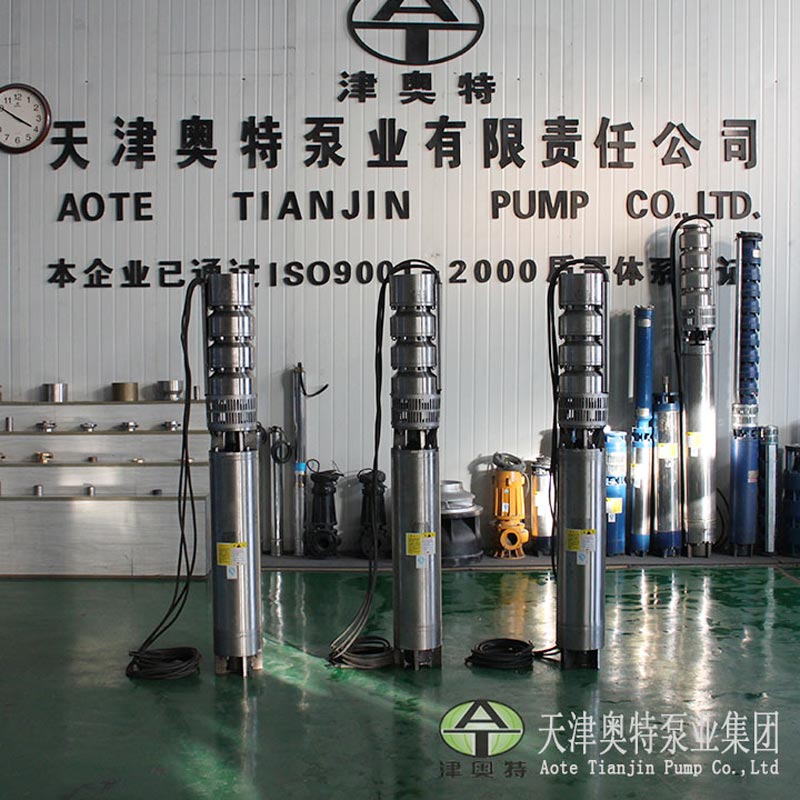

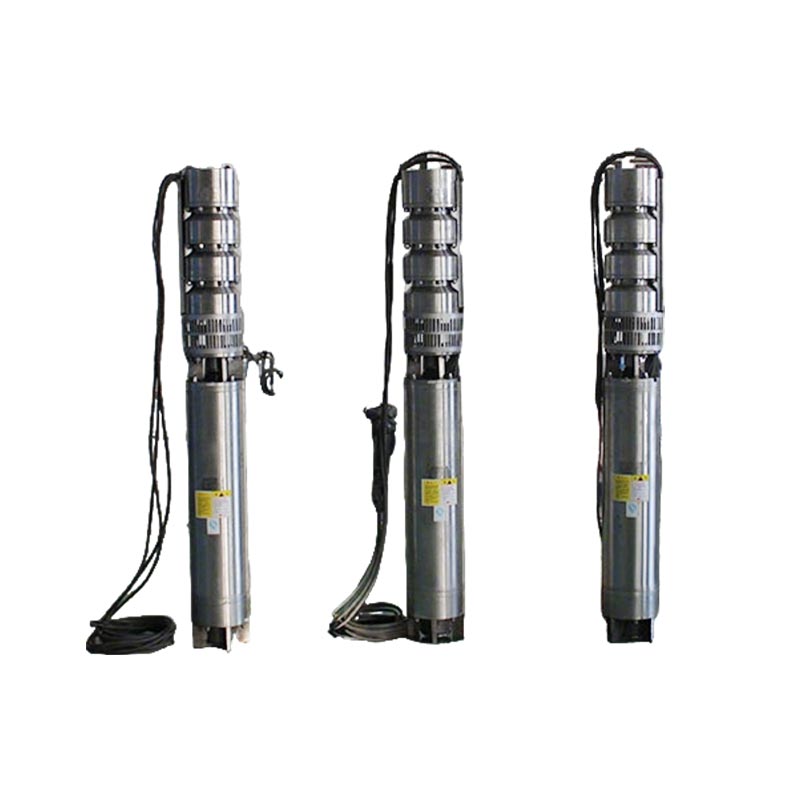

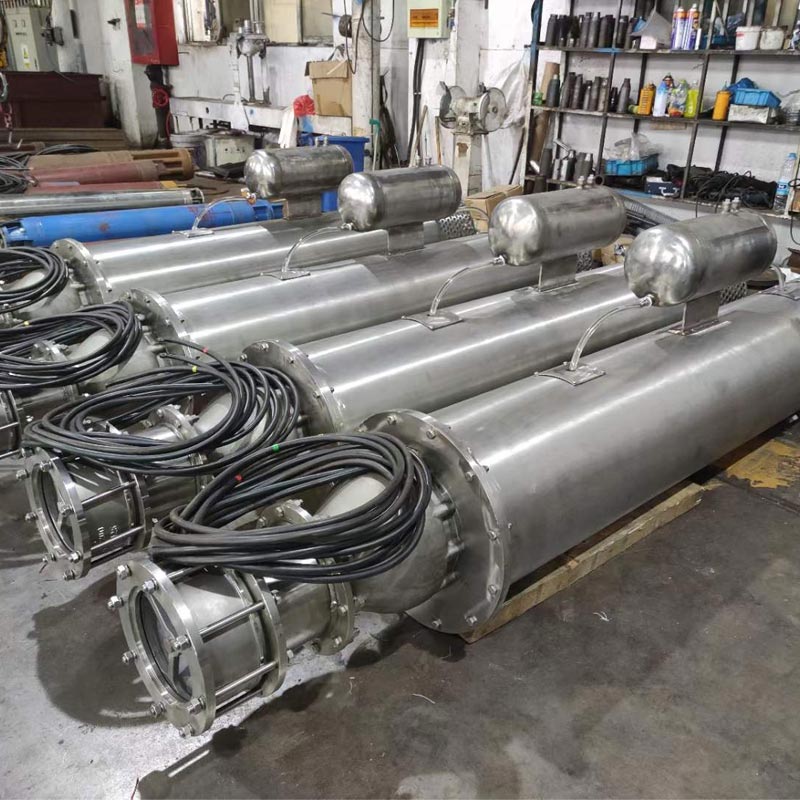

Our Stainless Steel Submersible Seawater Pump is designed for Corrosive liquid but not only seawater. That means it can work in many different projects which need submersible pumps. Vertical can be used in deep wells or ships, horizontal can be used in water tank / sea / mine pit, and horizontal can match with pontoon or floating if you need. Aote tianjin pump co.,ltd can also supply control box / water pipe / transformer and other equipment that match with electric submersible pumps.
| Name | Stainless Steel Submersible Seawater Pump |
| Material | Stainless Steel/bronze/cast iron |
| WorkVoltage | ≥380v, 3ph |
| Flow Rate | 20-500m3/h |
| HeadRate | Up to 300meters |
| Motor Power | Up to 700kw |
| Liquid Temperature | 0°C to +40°C (Standard) / Up to 100°C (High-temp version) |
| Protection Class | IP68 |
• Offshore platform seawater supply
• Marine cooling circulation systems
• Ship seawater intake systems
• Fire protection seawater systems
• Seawater desalination plants
• Reverse osmosis pretreatment systems
• Coastal water transfer projects
• Seawater circulation
• Fish farming oxygenation systems
• Large-scale marine aquaculture facilities
• Chemical processing plants
• Mining water drainage
• Saltwater and brine transfer
1. Please read the following warnings and instructions carefully.
2. The motor must be equipped with a starter box that has power failure, phase loss, and overload protection functions. The entire set of equipment should only be started and operated after testing. After stable operation, please adjust the protection performance parameters of the starter box to the appropriate position.
3. Before installing in a deep well, be sure to fill the water pump with clean water. When filling with water, the water pump must be placed vertically; horizontal placement is prohibited (to avoid inaccurate water levels, which may cause water shortage and damage to the motor).
4. During installation, be sure to equip the water pump with a power failure protection circuit. After the motor and pump body are assembled, the water pump should be able to rotate freely, and then tighten all bolts.
5. The diameter of the riser pipe should match the water pump.
6. When using under special conditions (e.g., in non-deep well environments), be sure to take proper grounding safety measures.
7. There should be at least a 5-minute interval between starting and stopping the water pump.
8. During maintenance, be sure to disconnect the power supply to avoid electric shock.
9. Ensure that the cable is pulled taut and secured to the lifting pipe within the flange groove.
We are well aware that if we save 1% of the testing process in our factory, customers will have to pay 100% of the dismantling and installation cost when we arrive at seaside construction sites in the Middle East or Southeast Asia.
1. Raw material traceability: Each batch of stainless steel material entering the factory must be tested for chemical composition through a spectral analyzer to prevent inferior recycled materials.
2. Process control: Vacuum impregnation treatment of motor winding to ensure insulation resistance does not decrease in humid and hot seawater environments.

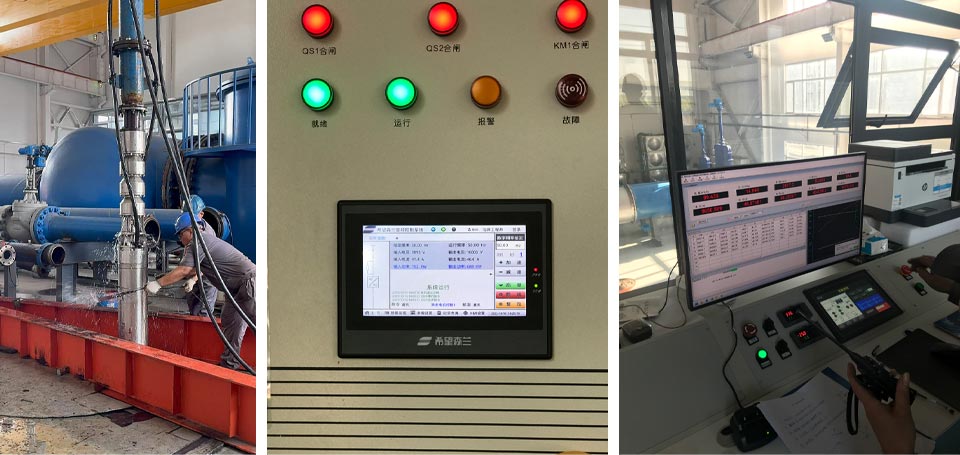

3. Factory testing: After each complete machine is assembled, a full performance curve test is conducted on a national standard test bench, including 0 flow (dead center) test, rated point test, and 25% overload test. And provide a factory test report with a handwritten signature.
4. Pressure test: The shell undergoes a water pressure test at 1.5 times the rated pressure to ensure no leakage in deep-sea conditions.
Aote has accumulated extensive experience in seawater and industrial pumping applications.
From pump selection to control systems and accessories, Aote provides integrated solutions.
Every pump is tested before delivery to reduce installation risks at remote project sites.
Flow rate, head, materials, voltage, installation method, and accessories can be customized according to project requirements.
Yes. The pump is commonly used for seawater intake and pretreatment systems in desalination plants. Material selection can be customized according to seawater conditions.
The installation depth depends on pump model, pressure requirements, and cable configuration. Our engineers can provide a customized solution according to project parameters.
Yes. The pump is designed for continuous operation in seawater environments with proper material selection and motor protection.
The pump can be supplied with ABS, DNV, CCS, and CE certifications depending on project requirements.
Yes. Aote can provide pumps, control cabinets, transformers, lifting pipes, cables, and related equipment for complete project solutions.
