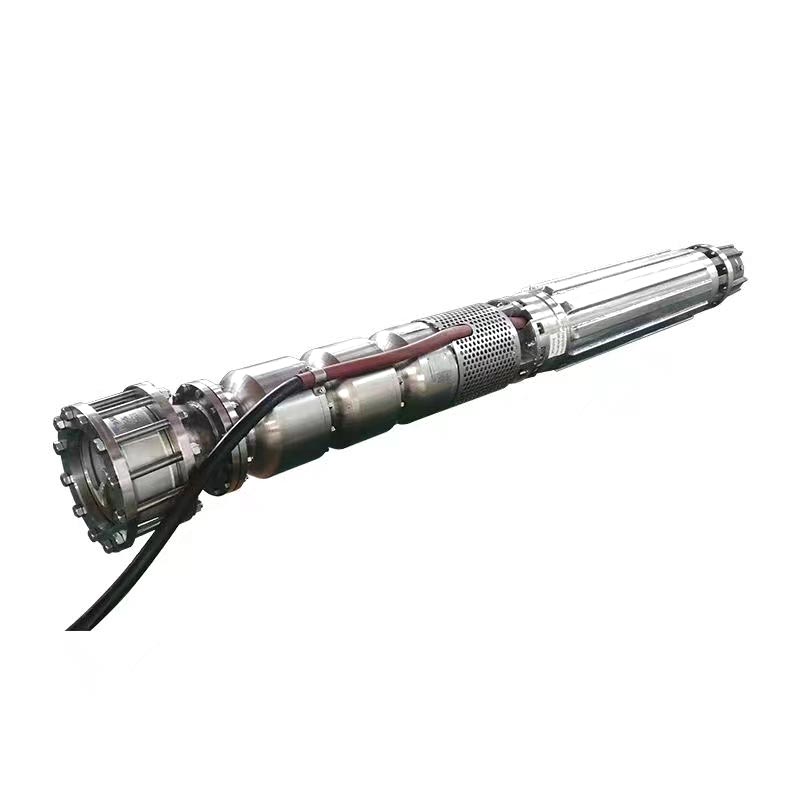

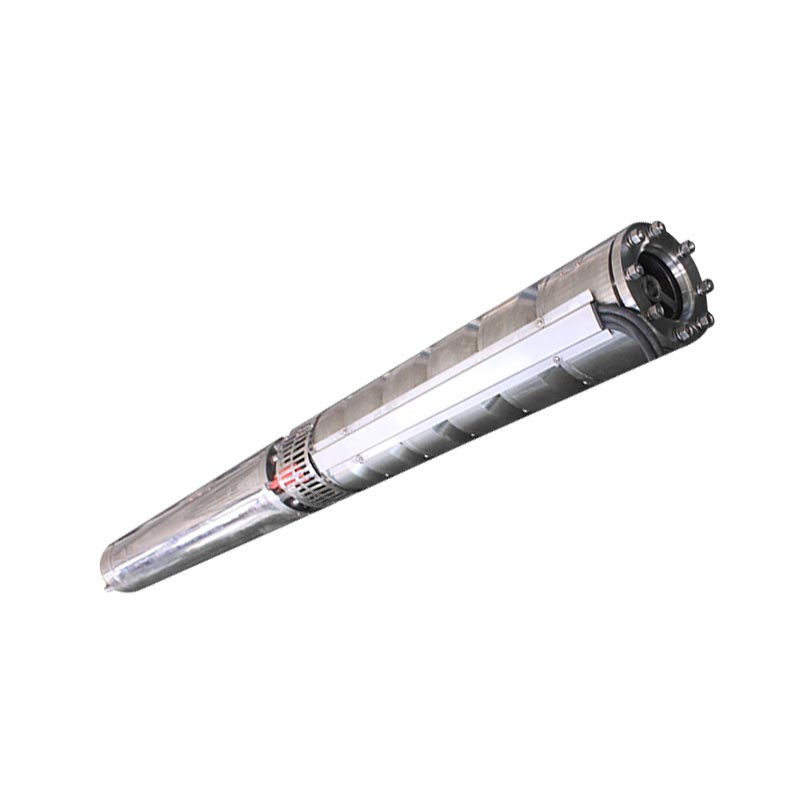

Anti corrosion electric submersible seawater pump

The Anti corrosion electric submersible seawater pump produced by Aote tianjin pump co.,ltd is for reliable operation in aggressive fluid environments, including seawater, brine, chemical-laden water, and acidic or alkaline solutions. Constructed with advanced corrosion-resistant materials (such as bronze, stainless steel 316L, or duplex steel2205), this pump effectively resists pitting, crevice corrosion, and galvanic attack.

Send Inquiry

Product Description

Our Anti Corrosion Electric Submersible Seawater Pump is designed for applications where standard cast iron or 304 stainless steel pumps fail due to rapid corrosion. By utilizing premium anti-corrosion alloys and advanced sealing technology, it delivers years of trouble-free pumping of seawater, brackish water, high-chloride effluent, diluted acids, and alkaline wastewater.
Whether you operate a desalination plant, offshore platform, coastal industrial facility, or chemical treatment plant, this pump provides the durability and efficiency you need.

Features

Premium Corrosion-Resistant Materials

1. Wet parts available in: Aluminum Bronze – Excellent for seawater, brine, and high-velocity flow;
2.Duplex Stainless Steel (2205/2507) – Superior chloride stress corrosion resistance bronze/904L– For extreme chemical & seawater conditions;
3.Multi-Stage Mechanical Seal System prevent corrosive media from reaching the motor.
4.Heavy-Duty Coated Fasteners
All bolts, nuts, and lifting rings are made of 316L for complete saltwater compatibility.

Applications

Industry	Typical Use
Desalination	Seawater intake, brine discharge, reverse osmosis feed
Marine & Offshore	Ballast water transfer, engine cooling, fire suppression
Chemical Processing	Acidic / alkaline effluent transfer, tank drainage
Coastal Industry	Cooling water circulation, washdown systems
Aquaculture	Fish farm water circulation, live well pumping
Wastewater	High-chloride or chemically treated effluent

Customer Case

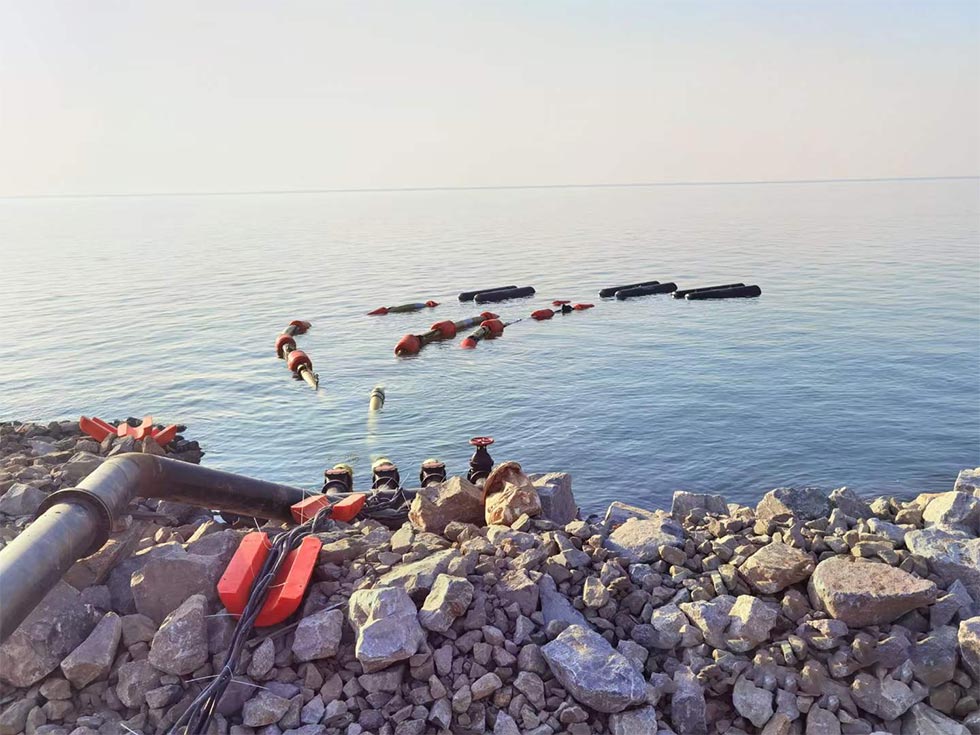

“JINAOTE” series Anti corrosion electric submersible seawater pump be used in seawater lifting in Tianjin LNG project.

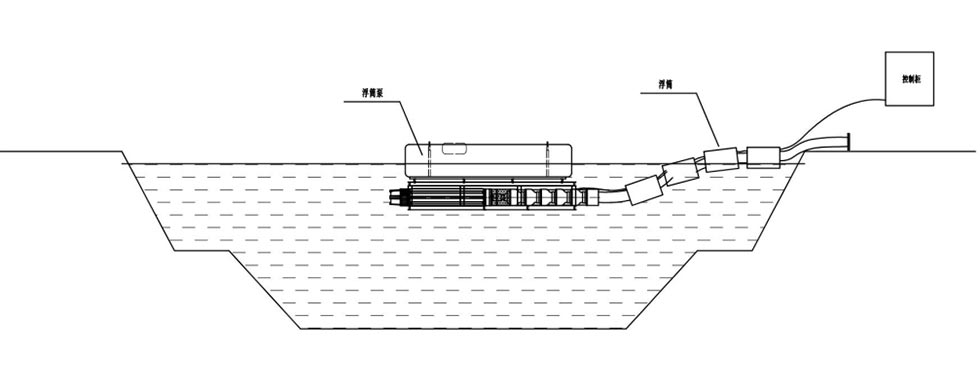

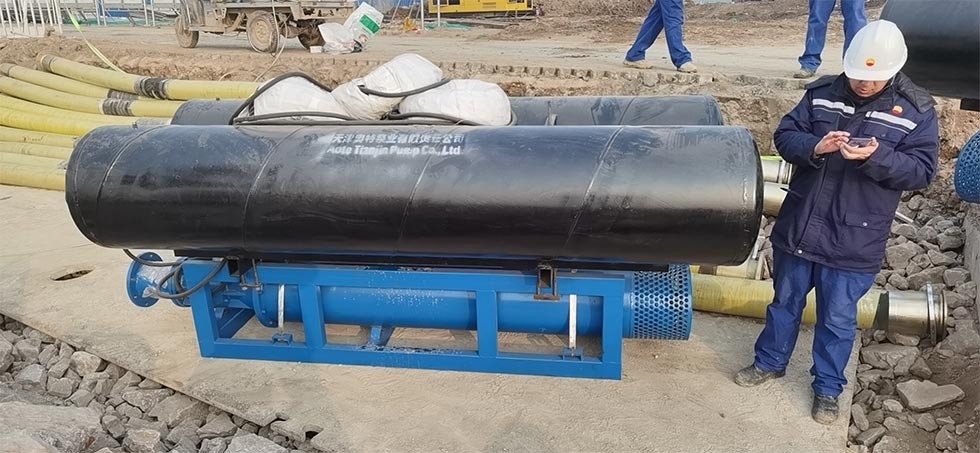

Installation: horizontal (pump set + pontoon); Pump be installed in sea, lifting water to Pump water to flush the storage tank.
Electricity: 400v/50hz; 3ph;
Type: AT400QJW400-82/160KW;
Capacity: 400m3/h;
Head: 82m;
Power:160kw;

Anti corrosion electric submersible seawater pump
