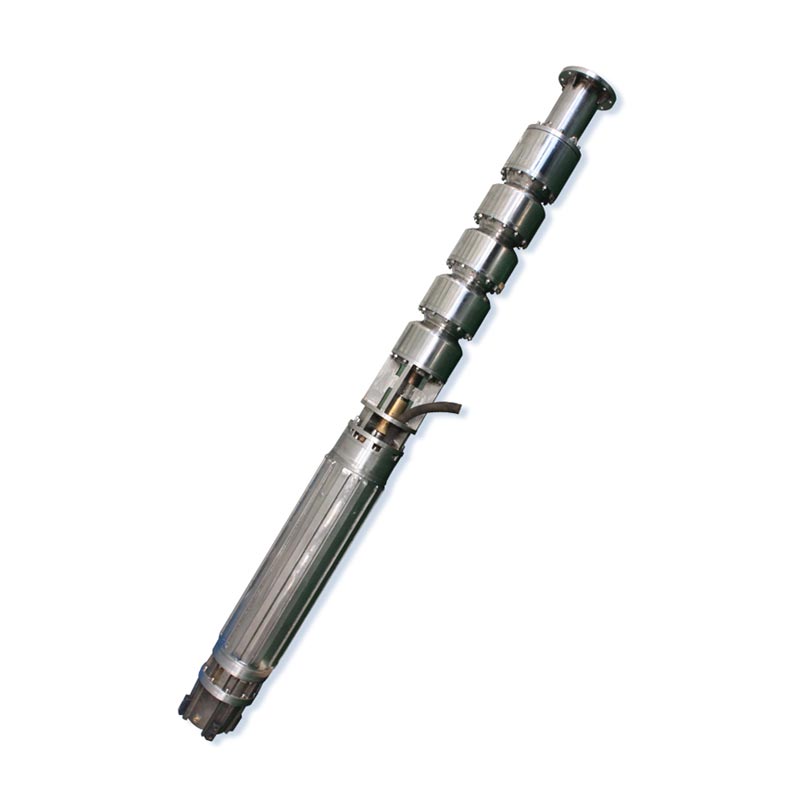

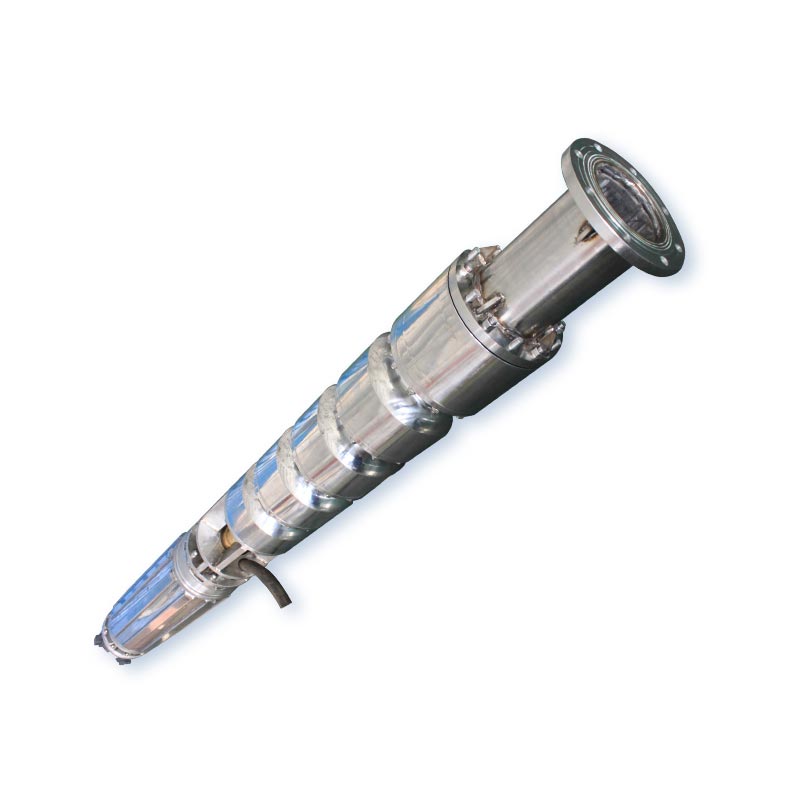

Submersible Seawater Pump for Deep well

The Submersible Seawater Pump for Deep Well is specially designed for applications requiring continuous seawater extraction from deep wells, offshore facilities and coastal water sources.

Unlike conventional freshwater submersible pumps, seawater pumping systems face challenges including chloride corrosion, marine biofouling, long-term immersion and unstable operating conditions. Aote deep well seawater pumps are engineered with corrosion-resistant materials and optimized hydraulic structures to ensure reliable operation in harsh marine environments.

This pump is widely used for:
• Offshore platform seawater intake
• Marine fire-fighting water supply
• Seawater desalination projects
• Coastal industrial cooling systems
• Aquaculture seawater circulation
• Ground source heat pump systems in coastal areas
• Coastal landscape fountain projects
• Underground drinking water and mineral water lifting

Advantage

1.Scientific design, high head for single stage impeller, steadily operating and low noise.
2.Superior stainless steel as its raw material, scientific casting method ensures the compactness of the molecular structure of castings.
3.CNC lathe precision machining ensures parallelism and perpendicularity of all the parts and also the pump’s concentricity, extending its service life.
4.Rigorous testing, well installation and full load performance test.
5.The service life of the improved rubber bearing liner is 2 times longer than that of common bearing liner.

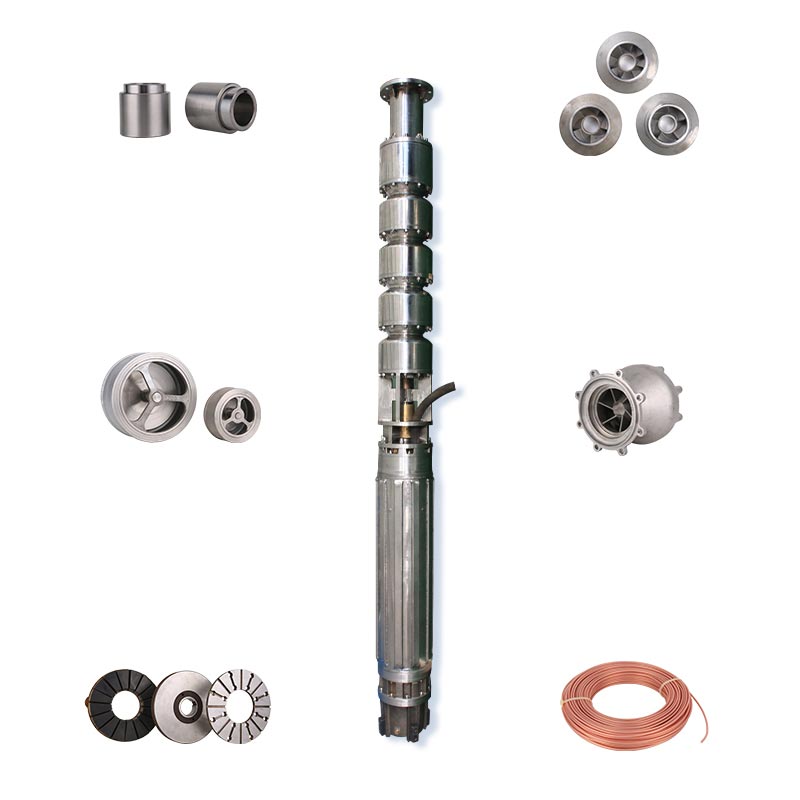

6.The material of the pump shaft: general chromium-plating,2Cr13, stainless steel 431, stainless steel 631, monel, etc.
7.Material of impeller: stainless steel 304, 316, 316L, tin bronze and aluminum bronze, etc.
8.Some of our products produced by introducing the Germany technology, increasing the pump’s outer diameter, meanwhile meeting the customers’ needs of high head submersible pump.

Motor parameter and service condition

1.The motor must be submerged into water in vertical form with a depth no more than 70m and the lower distance to the bottom of the well is no less than 5m(can customize if deeper).
2.The motor will operate continuously and is not suitable for frequently start.The starting time should be controlled between 5-25s according to different power, while the start-stop time should be controlled between 60-180s according to the head and pipe length.
3.If it is used in special circumstances, such as mining rescue, the submerged depth could be extended appropriately, then it must be put on records, or else it will not be within the warranty period.

Power Supply

380v/400v/440v/460v/600v/1000v/3000v/6000v/10000v...
50hz or 60hz.
If you need special voltage or frequency, please inform us in advance.
Installation form:
The normal installation form is vertical. If the actual condition doesn't allowed the vertical form, you can contact us to choose the motor of horizontal installation form.

Certificate

FAQ

Can this Submersible Seawater Pump for Deep well be used directly in seawater?

Yes. The pump is specifically designed for seawater applications. Corrosion-resistant materials such as 316L stainless steel, bronze and duplex steel can be selected according to seawater conditions.

How deep can the pump be installed?

The standard motor design supports submerged installation up to 70 meters. For deeper wells or special offshore projects, customized solutions can be provided.

What is the difference between a deep well seawater pump and a normal submersible pump?

A normal submersible pump is mainly designed for freshwater applications. Deep well seawater pumps require special materials and structures to resist chloride corrosion and long-term marine operation.

Can the voltage be customized?

Yes. Aote supports customized voltage from low voltage to high voltage systems, including 380V, 660V, 3000V, 6000V and 10000V solutions.

What industries use this pump?

Typical applications include offshore oil and gas platforms, desalination plants, aquaculture farms, marine cooling systems, coastal industries and fire protection systems.

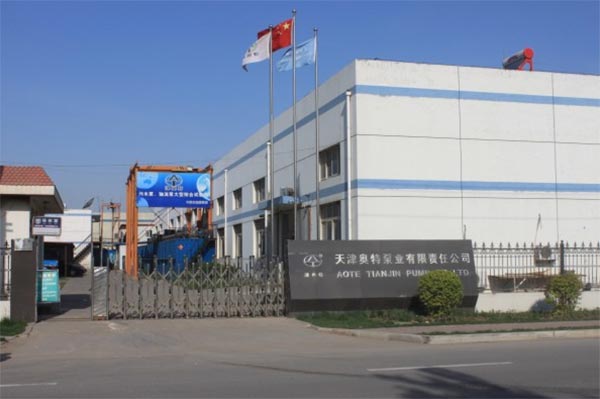

About Aote Tianjin Pump

Aote Tianjin Pump Co., Ltd. specializes in the research, manufacturing and supply of seawater submersible pumps, marine pumps and customized pumping solutions. With professional production technology and experience in corrosion-resistant pump applications, Aote provides reliable seawater pumping equipment for global marine and industrial projects.
