Electrical Submersible Pump for Oil

The Electrical Submersible Pump for Oil is a downhole artificial lift system designed for continuous crude oil production in deep wells, offshore platforms and complex reservoir conditions. It integrates a high-performance submersible motor, multi-stage centrifugal pump, gas and sand resistant protection system, and reliable sealing structure to provide stable oil lifting performance.

Designed for high water-cut wells, mature oilfields, offshore production and challenging reservoir environments, the oil ESP system helps operators improve production efficiency, reduce workover frequency and lower long-term operating costs.

With multiple pump diameters, power configurations and material options available, it can be customized according to well depth, fluid characteristics, temperature and production requirements.

Working Principle

An Electrical Submersible Pump for Oil works by converting electrical energy into hydraulic lifting power inside the oil well.

The system mainly consists of:
• Submersible motor
• Protector section
• Intake system
• Multi-stage centrifugal pump
• Gas handling components
• Power cable system

During operation, the motor drives multiple impellers at high speed. Each impeller stage increases fluid pressure through centrifugal force. After passing through hundreds of pump stages, the crude oil mixture gains sufficient pressure to overcome reservoir pressure, well depth and pipeline resistance before reaching the surface.

The fully submerged structure allows continuous operation under high-pressure underground conditions while protecting internal components from oil, gas, water and corrosive substances.

Main Components and Structure

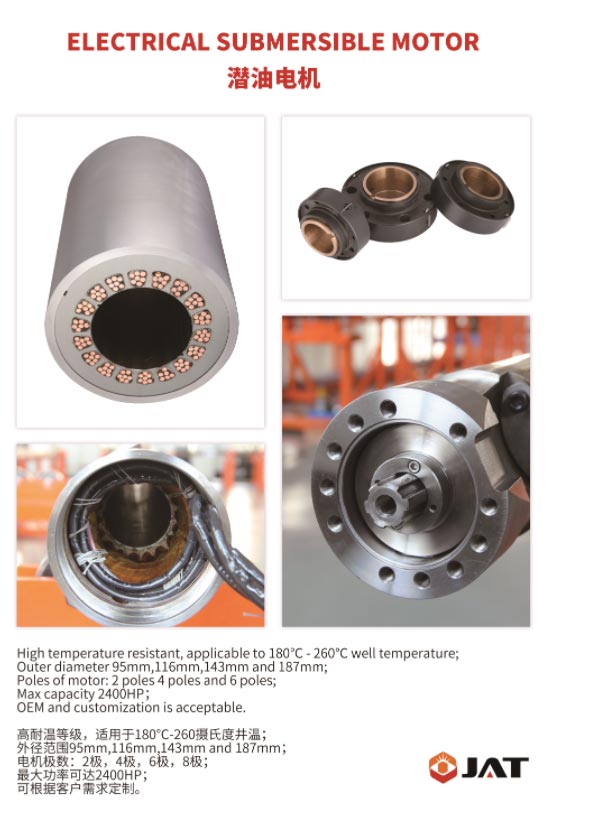

1. Submersible Motor

The high-efficiency motor provides stable driving power for long-term downhole operation.

Features:
High insulation performance
Continuous-duty operation capability
Stable temperature control
Adaptable voltage configuration

2. Multi-stage Centrifugal Pump

The pump section is designed with multiple impeller and diffuser stages.

Advantages:
High lifting capability
Stable flow output
Optimized hydraulic efficiency
Reduced energy loss

3. Protector System

The protector isolates the motor from well fluids.

Functions:
Prevents oil and water penetration
Balances internal and external pressure
Extends motor service life

4. Downhole Cable System

Special oil-resistant cables provide reliable power transmission under high-temperature and high-pressure environments.

Technical Specifications

Technical parameters can be customized according to specific oilfield conditions.

Applications

• Onshore Oilfield Development: The Electrical Submersible Pump for Oil is perfectly applicable to conventional oil wells, low-pressure oil reservoirs and water-flooding development wells, delivering stable daily crude oil lifting and satisfying long-term continuous production needs of land oilfields.

• Offshore Oil & Gas Production: Adaptable to narrow offshore well-bores and harsh marine working conditions, featuring compact structure and low failure rate to reduce offshore maintenance and operation costs.

• Special Reservoir Operation: Applicable to high-water-cut, slightly corrosive and abrasive oil wells, as well as geothermal oil wells, supporting safe and efficient fluid lifting in complex working conditions.

• Oil Well Stimulation & Restoration: Ideal for low-yield and exhausted oil wells, effectively improving fluid delivery efficiency and reviving the production capacity of aging oilfields.

Product Features

• Structural Design: The Electrical Submersible Pump for Oil adopts a neat, compact appearance with multiple optional outer diameters, which can perfectly match different wellbore sizes and adapt to various types of oil wells.

• High Lifting Efficiency: Optimized multi-stage hydraulic structure delivers stable pressure boost and large flow rate, realizing high-efficiency continuous crude oil lifting.

• Excellent Environmental Adaptability: Equipped with premium sealing and protective structures, resisting corrosion and abrasion from down-hole mixed media of oil, gas and water.

• Low Operation Cost: Features low energy consumption, stable operation and low failure rate, greatly reducing manual maintenance and field shutdown losses.

• Long Service Life: Factory-calibrated assembly and high-load bearing design enhance overall structural stability and extend equipment running cycle.

Hot Sale Series Product

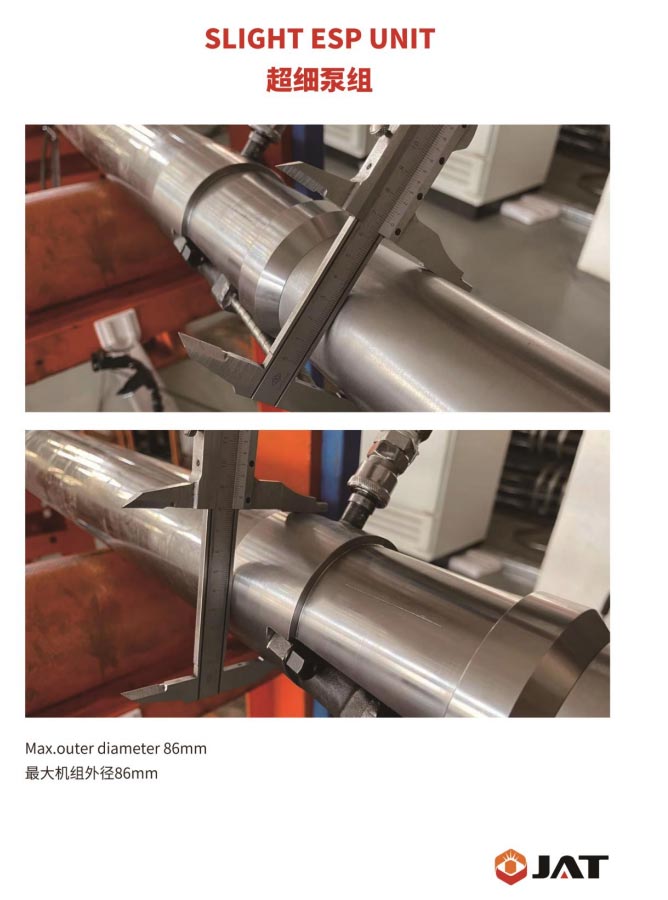

• 400 Series: Classic universal model with compact size, suitable for small-diameter conventional oil wells, featuring stable performance and cost-effectiveness for general oilfield production.

• 538/540 Series: Matches coiled tubing deployment systems, applicable to medium and large-diameter oil wells, supporting high-flow and high-lift working scenarios.

Product Features & Competitive Advantages

• Superior Anti-failure Performance: High-load thrust bearing and fully sealed protection structure effectively resist downhole impact, reducing equipment failure rate and workover frequency.

• Energy-saving & Efficient Operation: Optimized fluid dynamics modeling reduces hydraulic loss, lowering long-term energy consumption and overall operating costs for oilfields.

• Strong Customization: Multiple specifications and material configurations are available to cope with corrosive, abrasive and high-temperature special working conditions.

• Low Total Ownership Cost: Long service life, minimal maintenance demand and high operational stability bring sustained economic benefits for oilfield enterprises.

How to Select the Right Electrical Submersible Pump?

Choosing the correct ESP model requires evaluation of several oil well conditions.

1. Production Rate Requirement

Higher production wells require:
Larger pump diameter
Higher flow capacity
Optimized hydraulic stages

2. Well Depth

Deep wells require:
Higher head capability
More pump stages
Stronger mechanical structure

3. Fluid Characteristics

Important factors include:
Water cut percentage
Gas content
Sand concentration
Corrosion level
Crude oil viscosity

4. Operating Temperature

High-temperature wells require:
High-temperature motor insulation
Heat-resistant materials
Improved cooling design

Quality Control

• Raw Material Inspection: All core materials including alloy shaft and anti-corrosion accessories undergo strict component testing to ensure compliance with oilfield downhole standards.

• Precision Manufacturing: Adopts computational fluid dynamics optimization and CNC precision processing to guarantee accurate matching of impellers, diffusers and structural parts.

• Factory Performance Testing: Each unit passes full-flow pressure test, long-term operation test and sealing performance test before delivery to verify stability and reliability.

• Standardized Assembly: Implements unified factory calibration and compression assembly process to avoid manual assembly errors and ensure consistent product quality.

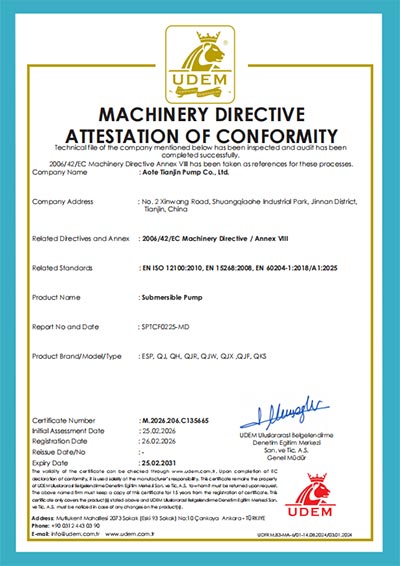

• Complete Quality Certification: Comply with international petroleum industry specifications, with traceable production and testing records for all products.

Differences from Ordinary Submersible Pumps

• Application Orientation: Electrical Submersible Pump for Oil is professionally designed for petroleum downhole lifting, adapting to oil-gas-water mixed media; ordinary submersible pumps are mainly for clean water and conventional industrial water delivery, unsuitable for oily corrosive media.

• Structural Strength: Oil ESP features high-pressure and anti-corrosion structural design to withstand extreme downhole pressure and temperature; ordinary submersible pumps have low structural strength and poor medium adaptability.

• Operational Stability: Oil ESP supports 24/7 long-term uninterrupted downhole operation; ordinary submersible pumps are not designed for continuous high-load long-cycle operation and are prone to failure.

• Performance Parameters: Oil ESP achieves ultra-high lift and large flow for deep oil reservoir lifting; ordinary submersible pumps have limited lift and flow, failing to meet deep well production demands.

• Protective Performance: Equipped with professional downhole sealing and anti-abrasion protection; ordinary submersible pumps have simple sealing structures and cannot resist downhole corrosion and abrasion.

Frequently Asked Questions

1. What is an Electrical Submersible Pump used for in oil production?

An ESP is an artificial lift system used to increase crude oil production by lifting oil from deep wells where natural reservoir pressure is insufficient.

2. What is the difference between an ESP and a normal submersible pump?

Oil ESP systems are designed for high-pressure oil wells and oil-water mixtures, while ordinary submersible pumps are mainly designed for water pumping applications.

3. How do I select the right ESP model?

Selection depends on well depth, production rate, fluid properties, temperature, casing diameter and operating conditions.

4. Can ESP pumps work in high water-cut oil wells?

Yes. ESP systems are commonly used in mature oilfields with high water-cut production conditions.

5. How long can an oil ESP operate underground?

Service life depends on operating conditions, material selection, installation quality and maintenance management.

6. Can the ESP system be customized?

Yes. Pump diameter, motor power, materials and hydraulic stages can be customized according to specific well requirements.

7. What tests are performed before delivery?

Typical tests include hydraulic performance testing, insulation testing, sealing testing and assembly verification.

8. Is an ESP suitable for offshore oil production?

Yes. Compact structure and long operating cycles make ESP systems suitable for offshore oil production applications.
