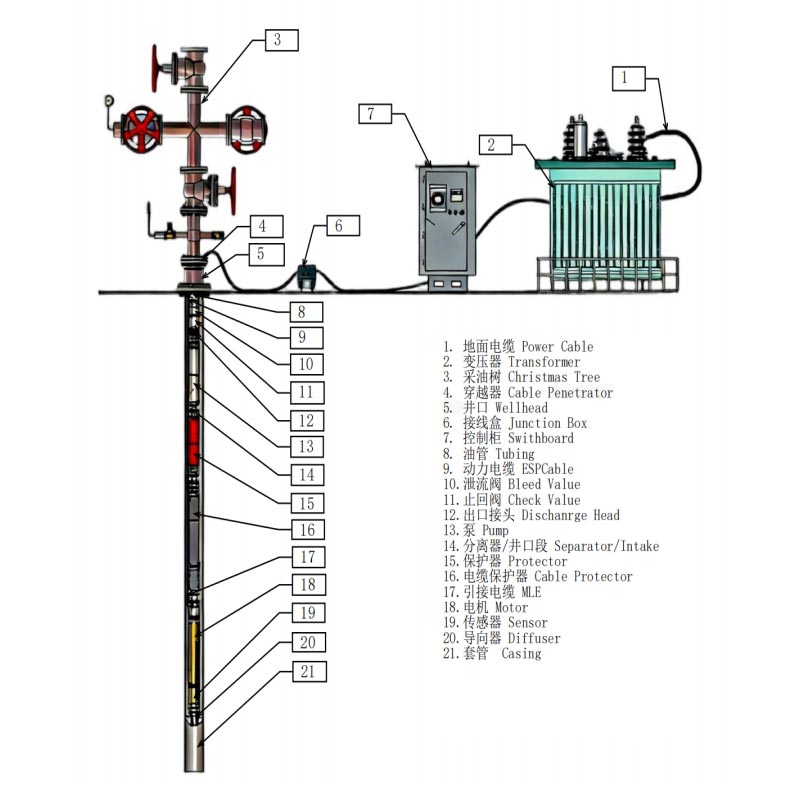

The Electrical Submersible Pump Artificial Lift (ESP) is not a single pump unit, but a complete downhole artificial lift solution, primarily composed of a submersible motor, protectors, a gas-liquid separator, a multi-stage centrifugal pump, cables, and surface control equipment.
This system uses a downhole motor to drive a multi-stage centrifugal pump, continuously transporting crude oil from the wellbore to the surface. It is suitable for deep wells, high water-cut wells, deviated wells, and production wells on offshore platforms where traditional pumping units cannot meet production requirements.
Compared to traditional artificial lift methods such as rod pumping and gas lift, ESP offers advantages such as: high single-well production capacity, small surface equipment footprint, suitability for highly deviated and deep wells, and the ability to meet long-term continuous production needs.
Therefore, it is widely used in onshore oilfields, offshore platforms, and production enhancement projects in mature oilfields.
For oil wells with high daily fluid production requirements, conventional manual lift methods may be limited by equipment size and operational efficiency.

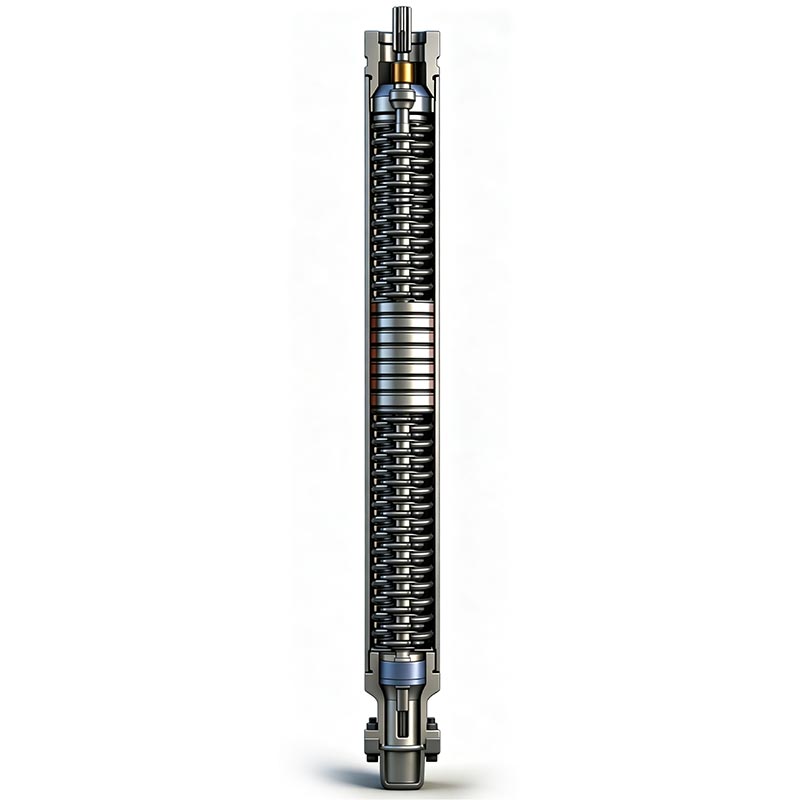

The ESP system employs a multi-stage centrifugal pump structure. By increasing the number of pump stages and optimizing impeller design, it achieves: higher fluid delivery capacity, stable downhole pressure control, and continuously increased crude oil production.
Suitable for: newly developed high-yield oil wells, large-scale oilfield development projects, and reservoirs requiring increased single-well production.
As well depth increases, traditional pumping equipment is easily affected by factors such as rod weight and mechanical wear.
ESP, through downhole power drive, can be configured according to well depth with: high-power submersible motors, multi-stage pump combinations, and high-strength connection structures. This helps customers solve the problem of decreased lift efficiency in deep wells.
Suitable for: Deep reservoirs, high static pressure wells, and production wells exceeding conventional lift ranges.
In the later stages of development, mature oilfields typically experience increased water cut, increased gas production, and changes in the properties of the produced fluids.
ESP systems can be improved in complex fluid environments through configurations such as gas-liquid separators, anti-gas-lock structures, corrosion-resistant materials, and optimized pump types.
Multi-stage pump impellers and diffusers are made of wear-resistant alloy steel via precision CNC machining, ensuring smooth fluid flow and high lifting efficiency. Submersible motor adopts high-temperature resistant winding insulation to sustain long-term downhole heat exposure.
The protector is filled with special isolation dielectric oil to block corrosive formation water, crude oil and associated gas from damaging motor internals.
All core components receive anti-sulfur anti-corrosion surface coating and multi-layer sealing treatment. Automated component matching and assembly lines guarantee tight fit of each module. Every finished set of quality Electrical Submersible Pump Artificial Lift passes full downhole simulation performance testing before delivery.
Electrical Submersible Pump Artificial Lift systems are primarily used in: Onshore oilfield production wells
Offshore platform oil wells
Deep well production projects
High water-cut mature oilfields
Heavy oil thermal recovery projects
Directional and horizontal wells
We offer the following support for different oilfield projects:
Based on the client's provided information: well depth data, production requirements, crude oil parameters, and well condition information, we provide ESP configuration recommendations.
We can provide: ESP pump sets, submersible motors, protectors, gas-liquid separators, matching cables, and control systems.
We support: bulk purchasing, OEM configuration, project spare parts supply, and long-term technical services.
ESP systems operate in environments involving high temperatures, high pressures, and corrosive well fluids; therefore, the precision of equipment manufacturing directly impacts the well's operational cycle. Key control points during production include:
Key hydraulic components such as impellers and guide wheels are precision machined to ensure consistent flow channel dimensions and improve pump efficiency.
High-temperature resistant insulation systems and rigorous winding testing reduce the risk of motor failure during long-term operation.
For sulfur-containing, high-salt, and highly corrosive well environments, we provide: selection of anti-corrosion materials, surface treatment, and multi-layer sealing protection.
Each ESP system undergoes the following testing before delivery:
Motor insulation testing, pump performance testing, sealing performance testing, and continuous operation simulation testing.
A1: It is a fully submerged integrated lifting system with high flow and high lift capacity. Unlike rod pumps limited by well depth and deviation, it works stably in ultra-deep and deviated wells without surface pumping units.
A2: Yes. All fluid contacting key parts adopt anti-sulfur alloy materials with special anti-corrosion coating. The built-in protector isolates corrosive media effectively to protect internal motor components.
A3: Sure. We provide complete Factory Direct Electrical Submersible Pump Artificial Lift service without intermediate dealers, and accept large project Wholesale Electrical Submersible Pump orders with flexible delivery schedules.
