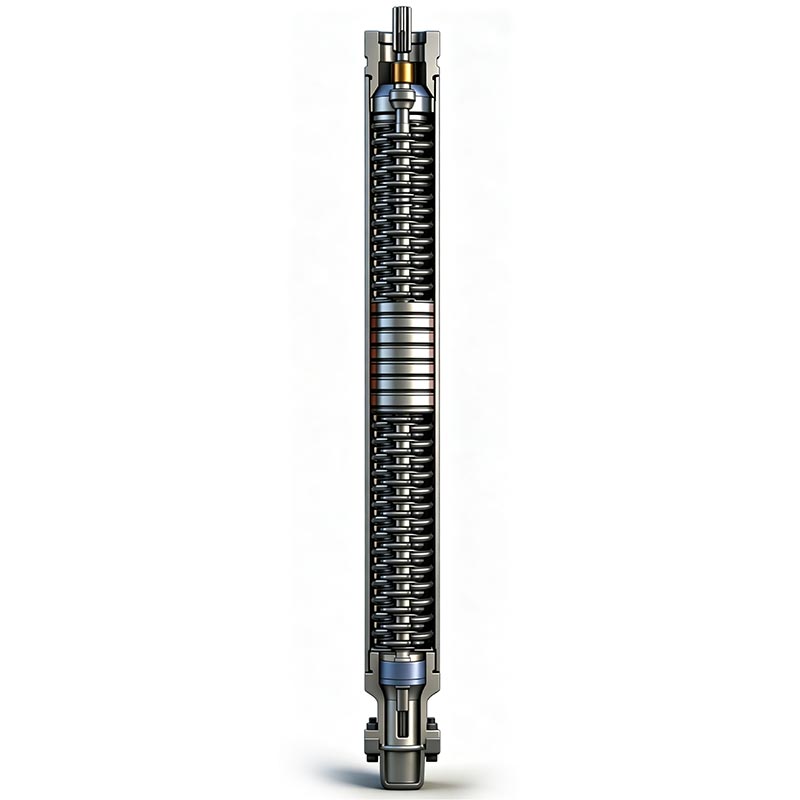

High Temperature Electrical Submersible Pump

High Temperature Electrical Submersible Pump (ESP) is designed for high-temperature water wells, geothermal wells and demanding downhole lifting applications. Developed from oilfield ESP technology, it combines high-temperature resistant motor components, compact slim-hole structure and multi-stage hydraulic design to provide stable water lifting performance under harsh underground conditions.

With operating capability in environments up to 260°C motor temperature and compatibility with 4.5-inch to 10-3/4-inch casing systems, this high temperature ESP pump is suitable for geothermal energy extraction, industrial hot water wells, deep water resources and other applications where conventional submersible pumps cannot operate efficiently.

Key Features

1. High Temperature Resistance for Harsh Downhole Conditions

The Pump is specifically engineered for continuous operation in high-temperature underground environments. The motor system uses high-temperature resistant insulation materials and heat-stable components to reduce thermal aging and maintain electrical performance during long-term operation.

Key temperature performance:

Motor temperature resistance up to 260°C

Suitable for geothermal wells with bottom-hole temperatures up to 200°C

Designed for continuous-duty operation in high-temperature water extraction applications

Reduced risk of insulation breakdown and motor failure caused by excessive heat

Compared with standard submersible pumps, this high-temperature ESP provides improved thermal stability for geothermal and hot water well projects.

2. Compact Slim-Hole Design for Various Casing Sizes

Originally developed for oilfield narrow wellbore applications, the High Temperature Electrical Submersible Pump features a compact diameter structure that allows installation in limited-space wells.

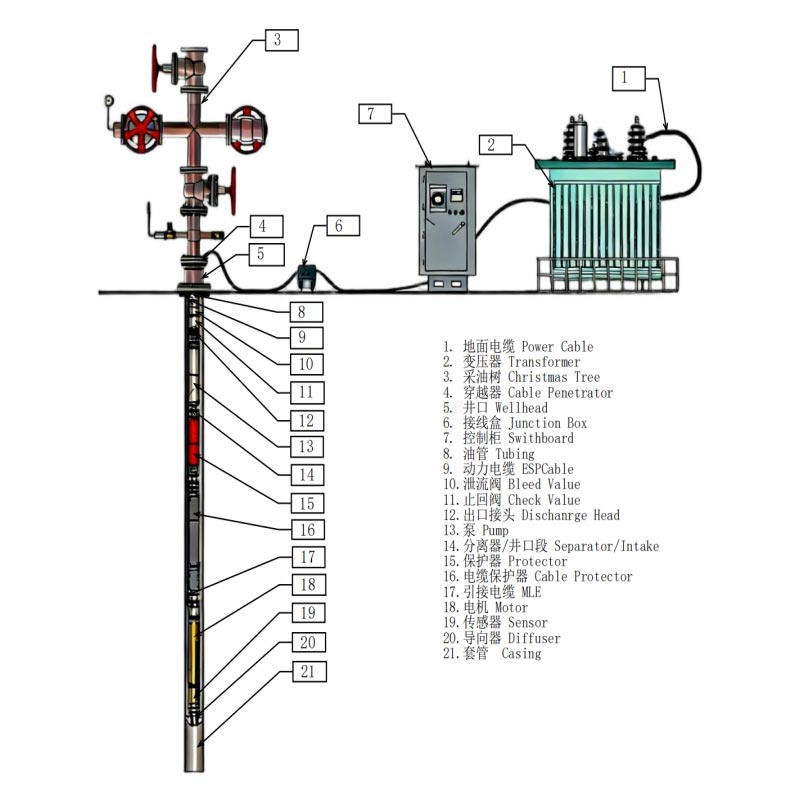

The optimized pump, protector and motor configuration provides flexible installation solutions for different casing sizes.

Application of 4.5-inch casing with minimum inner diameter 99.6mm for unit configuration

Application of 5.5-inch casing with minimum inner diameter 118.6mm for unit configuration

Application of 7-inch casing with minimum inner diameter 150.4mm for unit configuration

Application of 8-5/8-inch casing with minimum inner diameter 196.2mm for unit configuration

Application of 10-3/4-inch casing with minimum inner diameter 247.9mm for unit configuration

High Head Lifting Performance for Deep Wells

The High Temperature ESP Pump adopts a multi-stage centrifugal hydraulic structure optimized for deep well applications.

The hydraulic design provides:
High lifting head capability
Stable pressure output
Continuous water extraction from deep geothermal wells
Improved performance under high-temperature underground conditions

It is suitable for projects requiring long-distance vertical lifting, including geothermal heating systems, industrial hot water supply and deep water resource development.

Stable Operation and Energy-Efficient Motor Design

The motor system is designed for high-load and continuous operation in demanding environments.

Main performance advantages:
Full-torque starting capability for stable startup
High-load resistant thrust bearing structure
Optimized rotor design to reduce electrical loss and heat generation
Wear-resistant alloy components for improved durability

Compared with conventional ESP pumps, the optimized motor design helps reduce energy consumption and improve long-term operating efficiency in high-temperature well applications.

Technical Specifications

High Temperature ESP Pump Selection Guide

Selecting the correct ESP configuration requires consideration of several well conditions:

For accurate model selection, customers should provide:
Well depth
Casing size
Water temperature
Required flow rate
Required lifting head
Power supply information

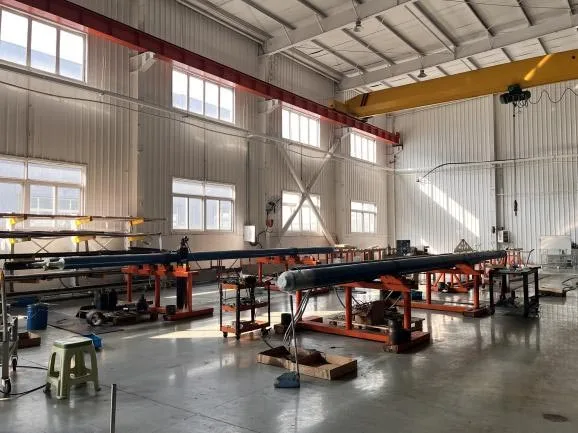

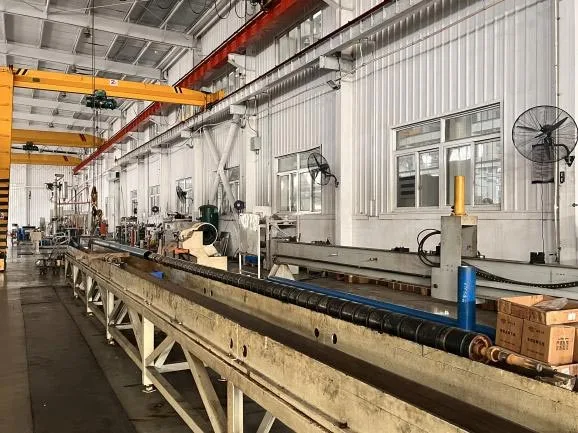

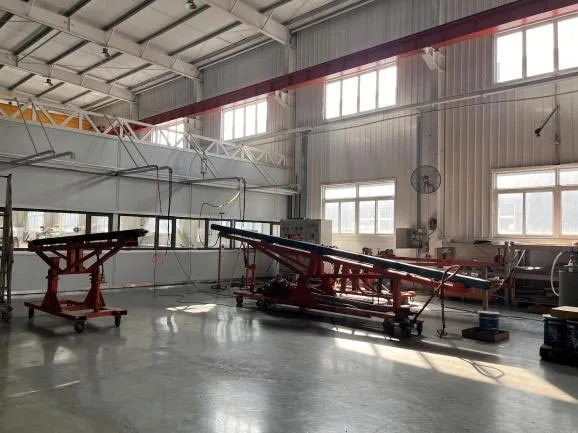

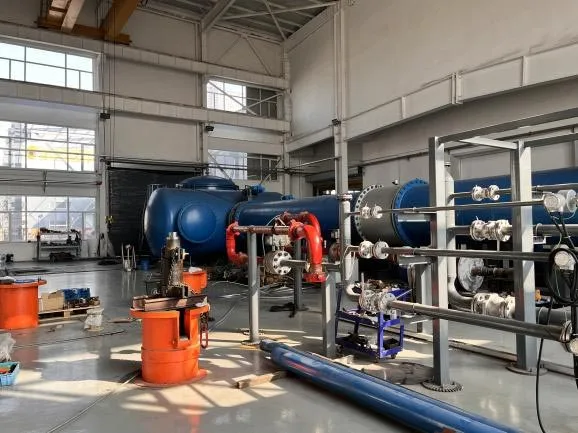

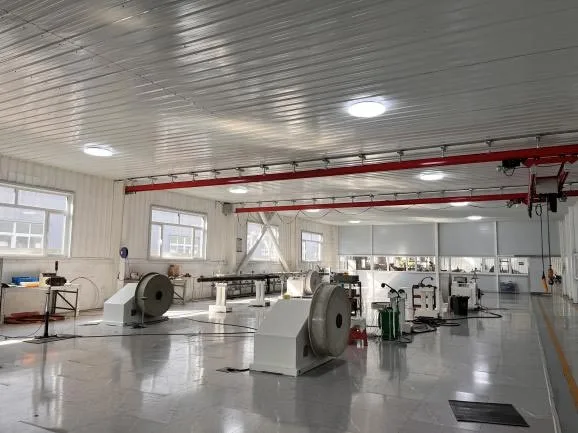

Manufacturing and Quality Control

Each High Temperature Electrical Submersible Pump ESP is manufactured according to strict industrial production procedures.

Quality control includes:
Motor insulation performance testing
Electrical safety inspection

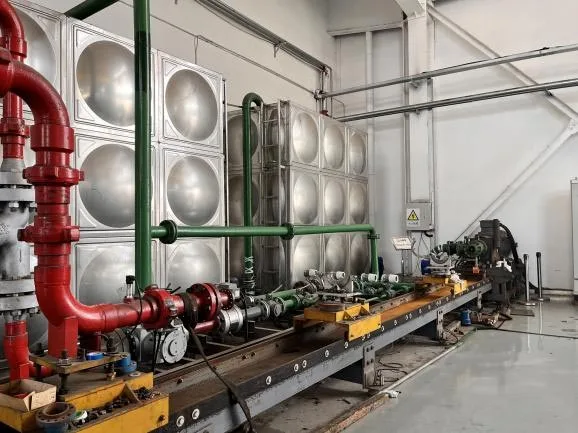

Hydraulic performance testing
Component dimensional inspection
Assembly verification

The production process focuses on ensuring stable operation, accurate assembly and long service life in geothermal and high-temperature well environments.

Applications

The High Temperature Electrical Submersible Pump is widely used in:
Geothermal Energy Projects
Geothermal heating systems
Geothermal power generation projects
Deep geothermal resource extraction
Industrial Hot Water Wells
Industrial process water supply
High-temperature groundwater utilization
Large-scale hot water circulation systems
Oilfield and Energy Applications
High-temperature water injection wells
Downhole lifting applications
Complex underground environments

FAQ

Q1: What is the maximum operating temperature of this High Temperature Electrical Submersible Pump (ESP)?

A1: Professionally developed and optimized for harsh oilfield high-temperature working conditions, this pump has withstood the test of extreme industrial environments. It can sustain long-term stable full-load operation at a motor temperature of 200°C and adapt to downhole bottom temperatures of up to 163°C, fully meeting the long-term and stable operational requirements of various high-temperature water wells and deep geothermal wells.

Q2: What well types is the small-diameter design suitable for?

A2: Benefiting from the high-standard slim-hole design originally customized for oilfield narrow wellbores, the small-diameter compact structure of the High Temperature Electrical Submersible Pump (ESP) is perfectly suitable for narrow-bore high-temperature water wells, slim geothermal wells and renovated old water wells. It solves the installation problem of large-sized submersible pumps in limited-space wellbores and greatly improves the utilization rate of small-caliber high-temperature water and geothermal wells.

Q3: What are the main application scenarios of this product?

A3: Originally designed and maturely applied for complex oilfield high-temperature working conditions with reliable quality and stable performance, this product has been successfully extended to new energy and water resource development fields. It is widely applicable to deep high-temperature water wells, industrial high-temperature water supply wells, deep geothermal exploitation wells, geothermal power generation and geothermal heating projects. Relying on its oilfield-grade high-temperature resistance and high-lift performance, it provides efficient and reliable artificial lifting solutions for high-temperature water resource utilization and geothermal energy development.
