Open Impeller Submersible Sewage Pump

Open Impeller Submersible Sewage Pump is a good choice for using in Sewage discharge, urban sewage treatment, environmental protection projects, etc. Wastewater discharge and treatment of facilities such as hospitals, hotels, residential areas, and subways. It can also be used for the discharge of slurry in construction sites. It is non-clog and suitable for water with soft fibers too.

Key Features and Benefits

1. Open Impeller Design for Improved Anti-Clogging Performance

The open impeller provides a larger passage for solid particles and fibrous materials to pass through smoothly. It is especially suitable for wastewater containing suspended solids or soft fiber contaminants.

2. Large Flow Capacity for Heavy-Duty Applications

With flow rates up to 5500m³/h and power ratings up to 550kW, the pump can handle large-scale wastewater transfer requirements in municipal and industrial projects.

3. Flexible Material Options for Different Media

Different materials are available according to the corrosion and abrasion conditions:

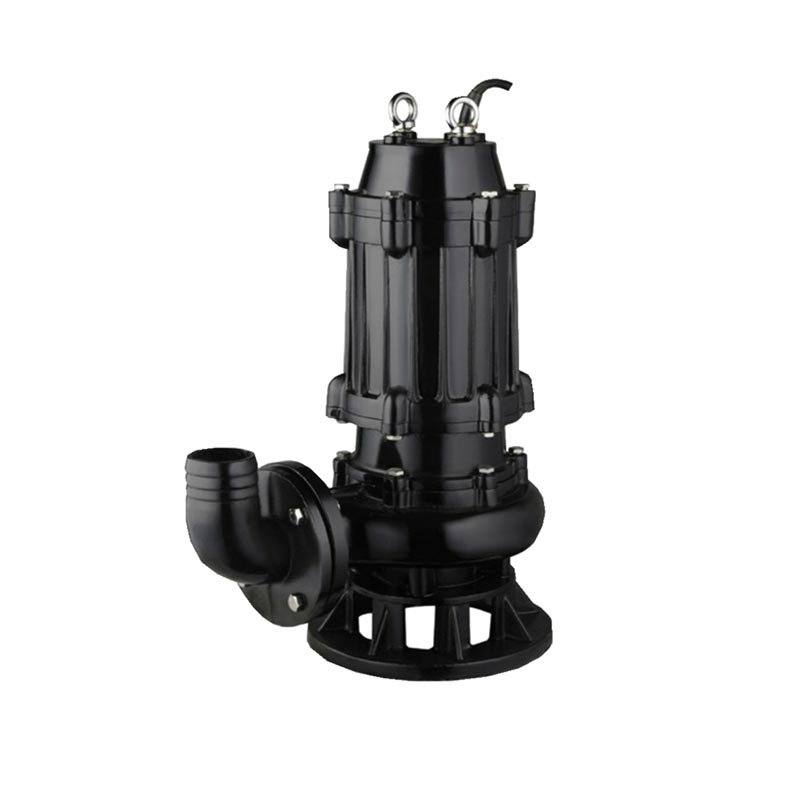

Cast Iron: Suitable for general municipal sewage and standard wastewater applications.

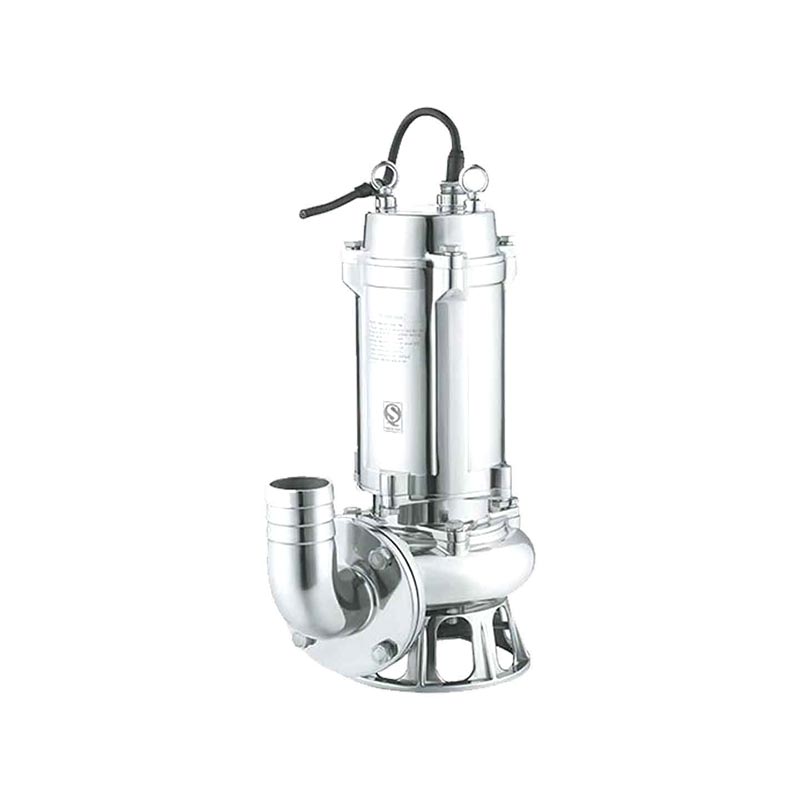

SS304 Stainless Steel: Suitable for mildly corrosive wastewater and food processing industries.
SS316/SS316L Stainless Steel: Designed for chemical wastewater and seawater environments.
Duplex Stainless Steel: Recommended for high chloride, highly abrasive and severely corrosive applications.

4. Multiple Installation Methods

The pump supports different installation configurations including automatic coupling, fixed wet installation, fixed dry installation and portable installation, providing flexibility for various sewage systems.

Parameters

Material Selection Guide

Installation Method

1.Auto-coupled installation

The pump is placed down along with the dude rod and automatically connected to the drainage pipeline system. Less cost for mounting and lowering the cost for repairing of open impeller submersible sewage pump.

2.Moveable hard pipe installation

The pump is supported by its foundation, the hard pipe is connected to the pipeline system.

3.Moveable soft pipe installation

The pump is supported by its foundation, the soft pipe joint is connected to the outlet rubber pipe, of multiple purpose easy to be mounted, the pump can be easily moved from one sewage well to another.

4.Fixed dry installation

For those pump system able to be subjected to water flood and for connecting to wet/dry well or pipeline.

5.Fixed wet installation

The pump is supported by its foundation and fixed on the bottom of the sewage well with the outlet connected to the pipeline, vertically mounted.

Submersible Sewage Pump advantages

1. Large flow
2. Suitable for various sewage conditions
3. Non-clogging
4. Easy installation

Why Choose AOTE Open Impeller Sewage Pump

22+ Years Pump Manufacturing Experience

AOTE Tianjin Pump Co., Ltd. specializes in sewage pumps and customized wastewater pumping solutions, serving customers with different industrial and municipal requirements.

Customized Engineering Solutions

Our engineers can provide pump selection recommendations based on:
Flow requirements
Head conditions
Medium characteristics
Installation environment
Wide Material Selection
We provide multiple material options to ensure suitable corrosion resistance and service life under different operating conditions.

Reliable Quality Assurance

Warranty:
18 months after shipment
or
12 months after commissioning
(whichever comes first)

Responsive Technical Support

Our engineering team provides after-sales support and responds to customer inquiries within 12 hours.

FAQ

What is the advantage of an Open Impeller Submersible Sewage Pump?

The main advantage is improved non-clogging performance. The open impeller design provides a wider flow passage, allowing solid particles and soft fibers to pass through more easily compared with traditional closed impellers.

What wastewater can an open impeller pump handle?

It can handle municipal sewage, industrial wastewater, sludge, drainage water and wastewater containing suspended solids or fibrous materials.

How do I choose the right sewage pump?

Selection depends on:
• Required flow rate
• Pump head
• Wastewater characteristics
• Solid particle size
• Installation method
• Corrosion conditions
AOTE engineers can provide suitable pump recommendations according to project requirements.

Can the pump be customized?

Yes. AOTE provides customization options including:
• Motor power
• Voltage
• Material selection
• Outlet size
• Installation configuration
