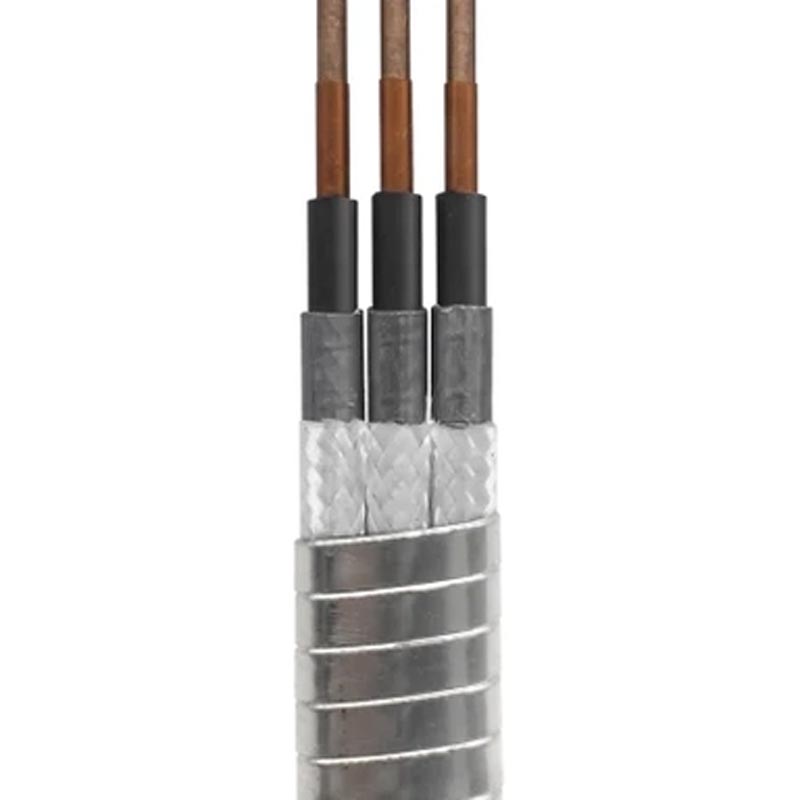

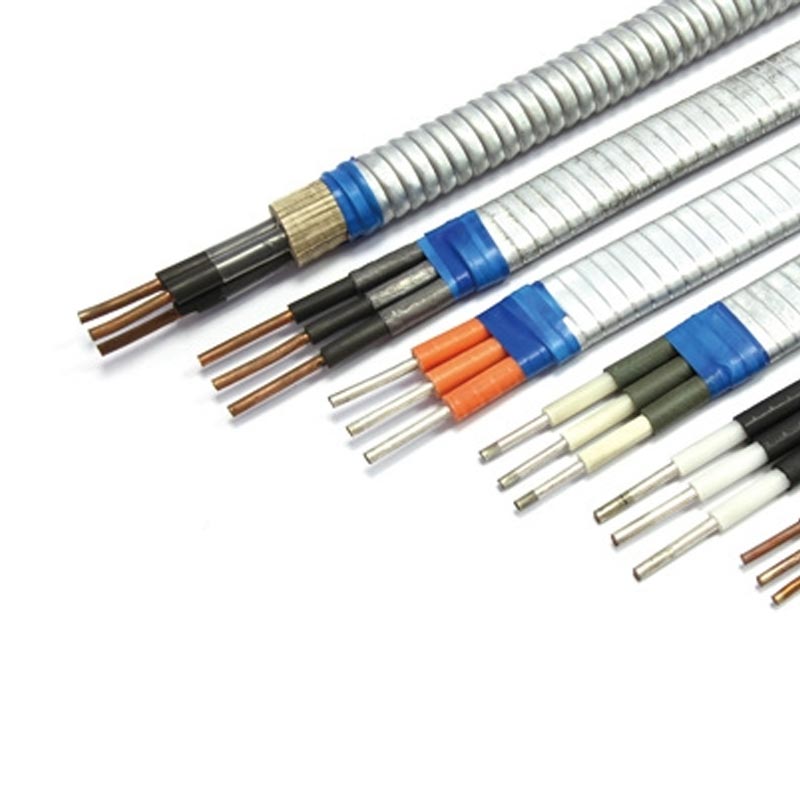

Armored Power Cable

Mechanical damage is one of the leading causes of power cable failure in industrial environments. Underground installation, construction machinery, heavy vehicle traffic, and rodent attacks can easily damage conventional cables, leading to costly downtime.

Armored Power Cable adds a galvanized steel tape armor between the insulation and outer sheath to provide additional protection against external mechanical forces while maintaining stable electrical performance.

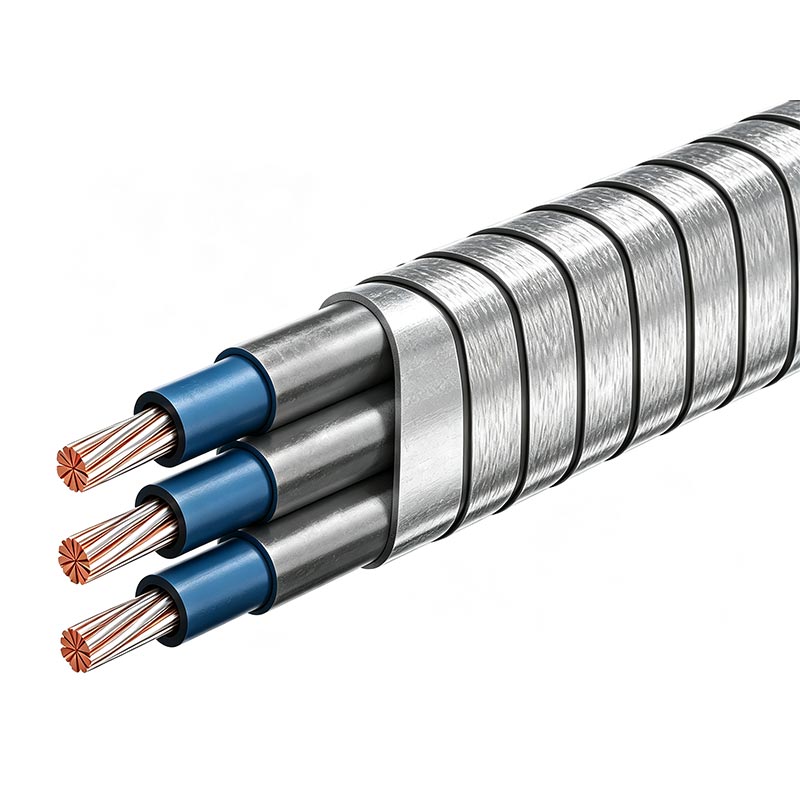

Cable Structure

Armored power cables consist of multiple protective layers designed to ensure electrical safety and mechanical durability.

1. Copper or Aluminum Conductor

The conductor has good conductivity and low resistance, providing stable current transmission.
Optional conductors: Copper conductor, Aluminum conductor

2. Insulation Layer

The insulation layer protects the conductor from leakage current and ensures safe operation under various temperature conditions.
Common materials: Cross-linked polyethylene (XLPE) insulation layer, Polyvinyl chloride (PVC) insulation layer

3. Inner Protective Layer

The inner liner provides support between the insulation layer and the armor layer, improving structural stability.

4. Steel Armor Layer

Galvanized steel armor is a critical protective component.
It resists: mechanical shock, compression, external pressure, rodent damage, installation stress.
Optional armor types: Steel tape armor, Steel wire armor

5. Outer Sheath

The outer sheath protects the cable from moisture, corrosion, UV radiation, and environmental aging.
Optional sheath materials: PVC, PE, LSZH

Technical Specifications

Key Performance Characteristics

1. Enhanced Mechanical Protection: The integrated steel armor enhances resistance to external mechanical forces, reducing the risk of damage during transportation, installation, and operation.

2. Suitable for Direct Burial Installation: The armored structure makes it suitable for underground installation, allowing for reliable use even when facing risks such as soil pressure, construction impacts, and environmental exposure.

3. Stable Electrical Performance: High-quality conductors and insulation materials ensure stable power transmission and insulation performance during long-term operation.

4. Reduced Maintenance Costs: Armored cables effectively prevent common physical damage, thereby reducing cable replacement frequency and unexpected downtime.

Armored Power Cable Selection Guide

Choosing the right armored cable depends on installation conditions, voltage requirements, and environmental factors.

1. Underground Cable Installation

Recommended: Steel tape armored cable
Applications: Cable trenches, underground power distribution, buried industrial cabling

2. Withstanding High Mechanical Stress

Recommended: Steel wire armored cable
Applications: Mining equipment, industrial machinery, high-tensile areas

3. Fire Safety Applications

Recommended: Low-smoke halogen-free sheathed armored cable
Advantages: Low smoke emissions, reduced toxic gas release, suitable for enclosed areas

4. For High Temperature Environments

Recommended: Cross-linked polyethylene insulated armored cable
Applications: Industrial plants, energy facilities, outdoor high-temperature applications

Application Areas

1. Oilfield Power Systems

Powering equipment: Oilfield equipment, pumping systems, field electrical installations

2. Mining Industry

Applicable to: Mining machinery, crushing equipment, underground power systems

3. Infrastructure Projects

Applications: Roads, bridges, municipal engineering, underground power networks

4. Industrial Facilities

Applications: Factory power distribution, heavy equipment connections, outdoor electrical systems

Factory Testing and Quality Control

Each batch of products undergoes rigorous inspection before shipment to ensure electrical safety and mechanical reliability.

Testing items include:
1. Electrical Testing: Conductor resistance testing, insulation resistance testing, high-voltage withstand voltage testing
2. Mechanical Testing: Armor structure inspection, compression testing, impact resistance testing, tensile strength verification
3. Material Inspection: Insulation layer thickness inspection, sheath quality inspection, appearance inspection
Our quality control process ensures that every armored power cable meets project requirements before delivery.

FAQ

1. What is Armored Power Cable used for?

Armored Power Cable is mainly used for underground, outdoor and industrial applications where cables require additional mechanical protection against impact, crushing and environmental damage.

2. What is the difference between armored and normal power cable?

Normal power cables mainly provide electrical insulation, while armored cables add a metal protective layer to improve mechanical strength and durability.

3. Can armored cables be directly buried underground?

Yes. Armored cables are commonly used for direct burial installation because the armor layer provides additional protection against soil pressure and external impact.

4. Steel tape armor or steel wire armor, which is better?

Steel tape armor is commonly used for buried applications requiring mechanical protection. Steel wire armor is preferred for applications involving higher mechanical stress and pulling forces.

5. What conductor materials are available?

We supply both copper conductor and aluminum conductor options according to project requirements and cost considerations.

6. Can you manufacture customized armored cables?

Yes. We provide customization for conductor size, voltage rating, insulation material, armor type, sheath material and cable length.

7. What standards can your armored cables meet?

Products can be manufactured according to IEC standards and customer-specific technical requirements.

8. What industries use armored power cables?

They are widely used in oil and gas, mining, utilities, industrial plants, renewable energy and infrastructure projects.

9. Do you support OEM and bulk orders?

Yes. We provide OEM service and bulk production support for distributors and engineering projects worldwide.

10. How do you ensure cable quality?

Each batch is tested through electrical performance checks, mechanical inspection and material verification before shipment.

Why Choose Us

1. Engineering-Based Cable Solutions

We offer more than just standard cables. Our technical team assists customers in selecting appropriate conductor sizes, insulation materials, and armor structures based on the actual installation environment.

2. Stable Production Capacity

Professional production equipment and rigorous production processes ensure consistent cable quality for large-scale projects.

3. Flexible Customization Services

From cable structure design to OEM marking and packaging, we support customized needs for different markets and applications.

4. Quality-Focused Production Process

Every cable undergoes electrical and mechanical testing before delivery to reduce installation risks and improve project reliability.

5. Extensive Global Project Experience

Our armored power cable solutions are widely used in industrial facilities, infrastructure projects, oil fields, and mining industries where reliable power transmission is required.
