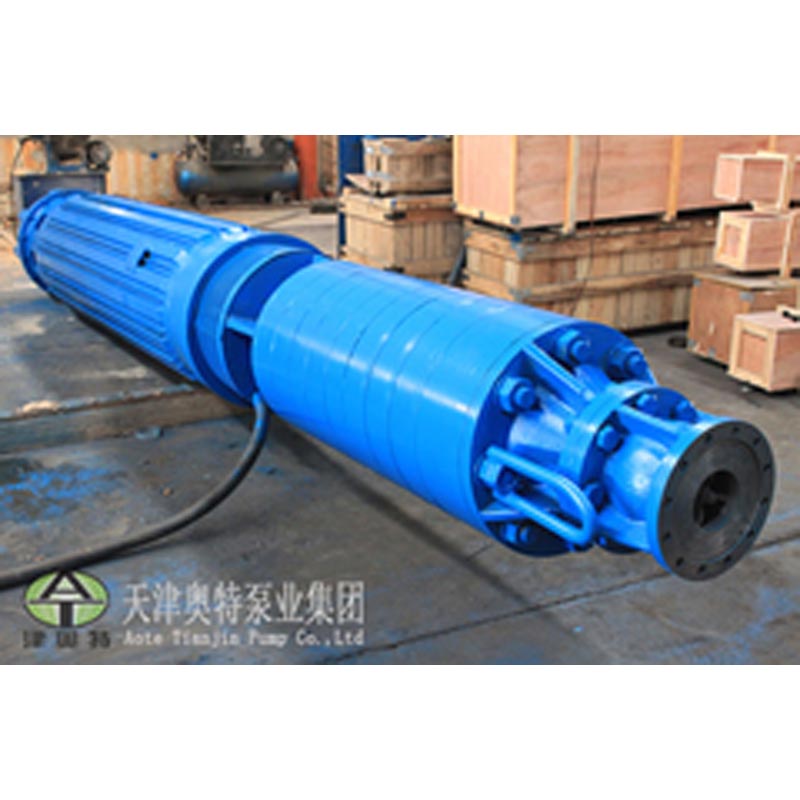

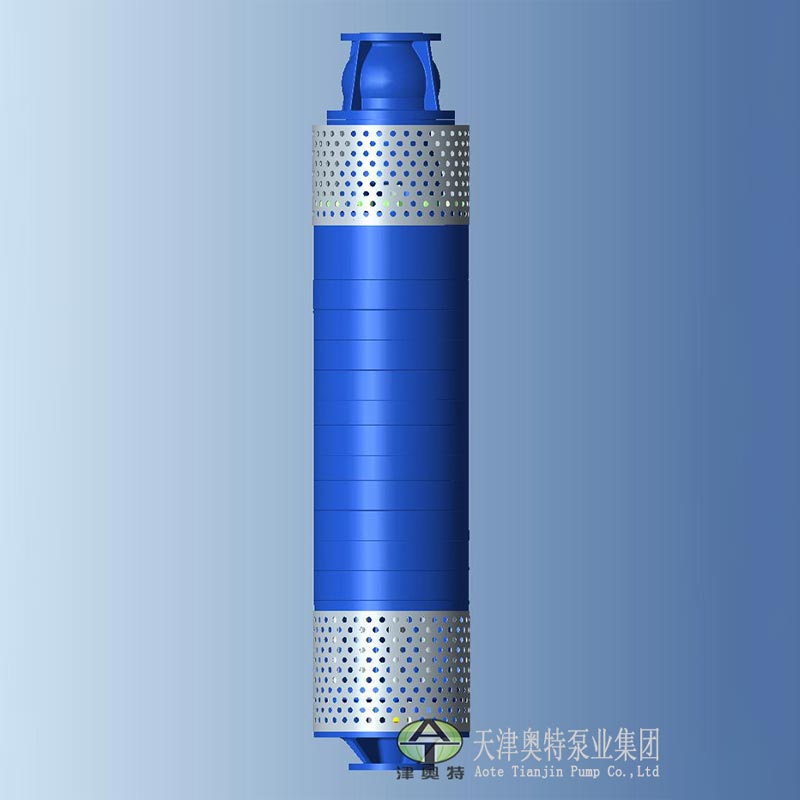

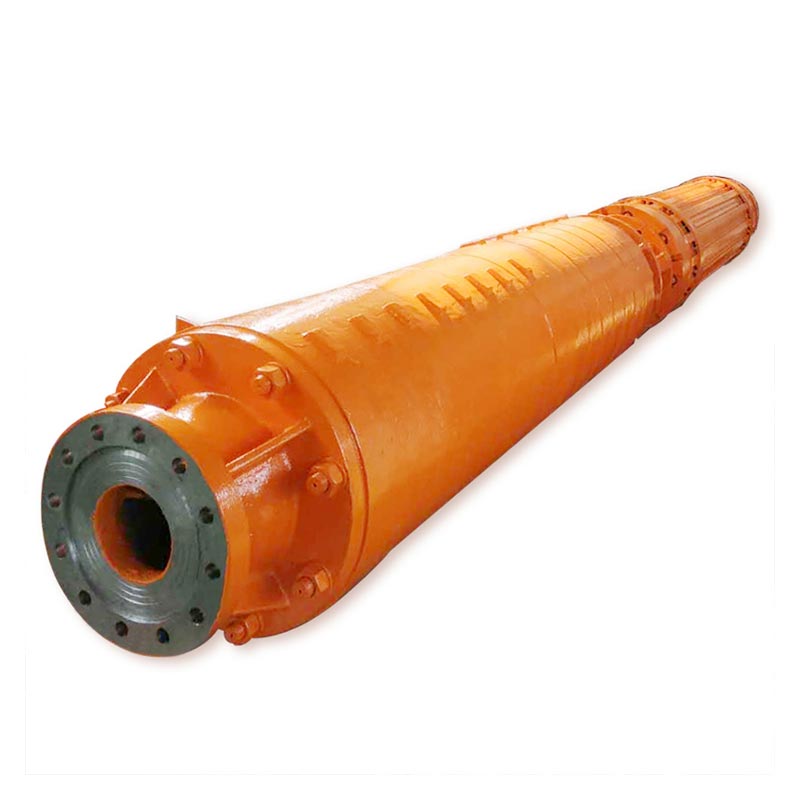

Vertical Submersible Mining Pump

JINAOTE Vertical Submersible Mining Pump is a heavy-duty pumping solution specially developed for demanding mining and industrial drainage applications. Designed with a vertical structure and high-strength materials, this pump provides reliable performance for continuous operation in harsh environments containing water, mud, sand, and other abrasive particles.

The pump is engineered to deliver stable flow capacity, excellent wear resistance, and long service life in underground mines, open-pit mining sites, quarries, and large-scale industrial water management systems.

Unlike conventional surface-mounted pumps, the vertical submersible design allows direct installation in water collection pits, reducing installation space requirements and improving pumping efficiency. This makes it an ideal choice for mine dewatering, wastewater removal, and emergency drainage operations.

Why Choose Vertical Submersible Design for Mining Dewatering?

Mining drainage systems usually face challenges such as limited installation space, changing water levels, abrasive particles, and continuous pumping requirements. The vertical submersible structure provides practical advantages for these conditions.

1. Space-Efficient Installation in Restricted Mining Areas

Underground mines and drainage stations often have limited installation space.
The vertical configuration allows the pump to be installed directly in:
mine sumps
drainage pits
underground collection chambers
narrow pumping stations
without requiring large foundation structures or additional suction pipelines.
This helps simplify installation and improves space utilization.

2. Direct Submerged Operation for Stable Water Intake

Because the pump operates directly inside the water source, the vertical submersible design reduces suction losses and improves pumping stability.
It is especially suitable for:
deep drainage pits
fluctuating water levels
temporary flooding conditions
continuous mine water removal

3. Designed for Abrasive Mine Water Conditions

Mine drainage water may contain:
sand particles
rock fragments
mineral sediments
suspended solids
JINAOTE pumps use wear-resistant materials and optimized hydraulic components to reduce abrasion damage and extend service intervals in harsh working environments.

Technical Specifications

Product Applications

JINAOTE Vertical Submersible Mining Pump is widely used for:
Underground mine drainage and water removal
Open-pit mine dewatering systems
Quarry pit water pumping
Tailings pond water recovery
Construction foundation drainage
Industrial wastewater transfer
Metallurgical plant drainage
Coal mine water management
Emergency flood control pumping

In mining operations, effective water management is essential for maintaining safe working conditions and ensuring continuous production. Submersible mining pumps are commonly applied for removing accumulated groundwater, process water, and contaminated drainage water from mining areas.

Product Advantages

1. Heavy-Duty Mining Performance

Built for severe working conditions, the Vertical Submersible Mining Pump uses robust pump components and wear-resistant materials to withstand abrasive environments containing sand, mineral particles, and slurry.

2. Space-Saving Vertical Structure

The vertical installation design minimizes footprint requirements and allows flexible placement in narrow mine shafts, drainage pits, and restricted working areas.

3. Excellent Wear Resistance

High-quality cast materials and specially designed impellers improve resistance against abrasion caused by solid particles, extending maintenance intervals.

4. Reliable Submersible Motor Design

The waterproof motor structure provides safe operation under submerged conditions with effective cooling performance and long-term durability.

5. Easy Maintenance & Lower Operating Cost

The modular structure allows convenient inspection, repair, and replacement of key components, reducing overall lifecycle costs.

Typical Working Environments

JINAOTE Vertical Submersible Mining Pump is designed for challenging environments including:

Underground Mining Sites

Used for removing groundwater and accumulated water from underground tunnels, shafts, and collection sumps.

Open-Pit Mines

Provides continuous drainage solutions for rainwater, groundwater, and production wastewater.

Quarries and Aggregate Plants

Handles water containing suspended solids generated during excavation and processing.

Industrial Facilities

Suitable for wastewater transfer, drainage stations, and heavy-duty pumping applications.

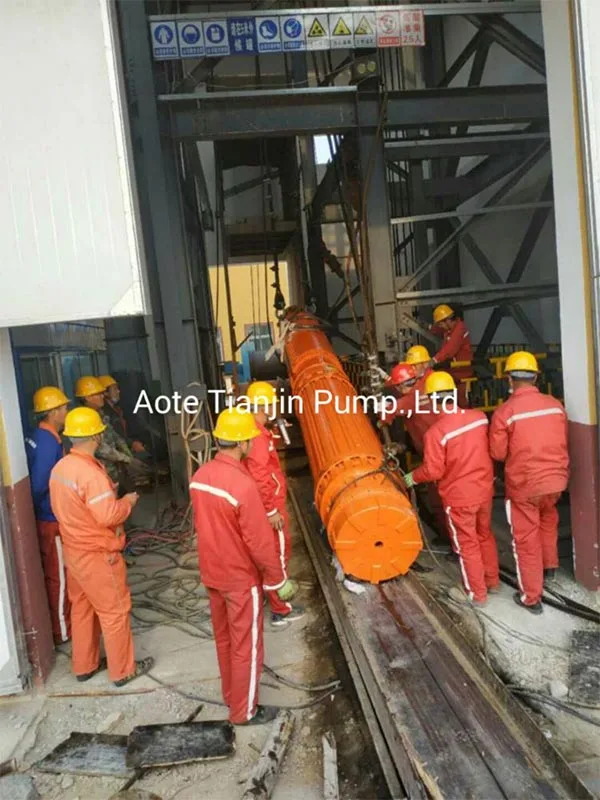

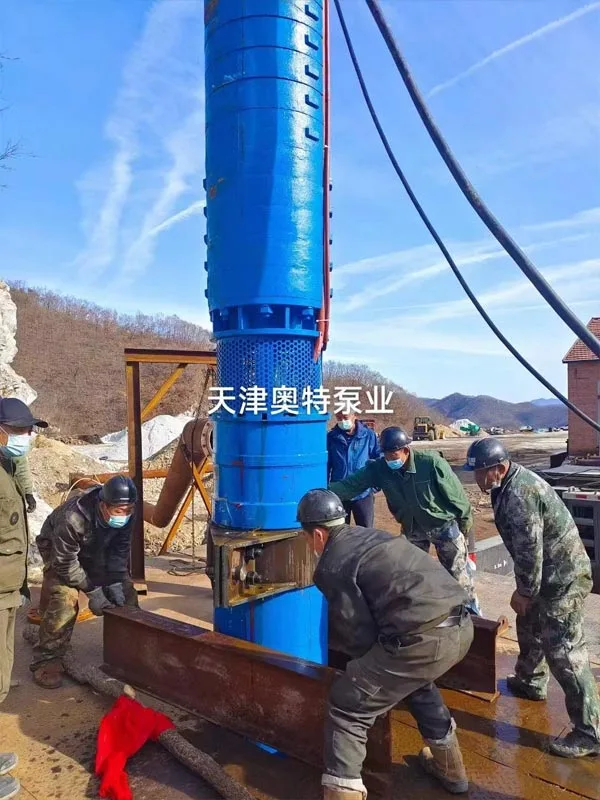

Installation Method

JINAOTE Vertical Submersible Mining Pump supports multiple installation methods according to different site conditions:

1. Fixed Vertical Installation

The pump is installed vertically in a sump, drainage pit, or water collection chamber for permanent operation.

2. Guide Rail Installation

A guide rail system can be applied for convenient lifting, positioning, and maintenance without dismantling the pipeline system.

3. Mobile Pumping Installation

For temporary drainage requirements, the pump can be installed with lifting equipment and flexible discharge pipelines for rapid deployment.

4. Customized Installation Solutions

Aote Tianjin Pump provides customized solutions according to:
Pumping depth
Required flow rate
Water quality conditions
Solid particle content
Installation space limitations

Frequently Asked Questions

Q1: What is a Vertical Submersible Mining Pump used for?

A Vertical Submersible Mining Pump is mainly used for mine dewatering, drainage, wastewater removal, and water transportation in underground mines, open-pit mines, quarries, and industrial sites.

Q2: Can this pump handle water containing solid particles?

Yes. The pump is designed with wear-resistant components and can handle water containing a certain amount of sand, mineral particles, and suspended solids.

Q3: Is the pump suitable for continuous operation?

Yes. JINAOTE mining pumps are designed for long-time operation under demanding industrial conditions with proper installation and maintenance.

Q4: Can the pump be customized according to project requirements?

Yes. Aote Tianjin Pump can customize pump specifications including flow capacity, head, motor power, materials, and installation configuration.

Q5: How do I select the right mining pump model?

Selection depends on several factors, including: Required flow rate/Pumping head/Water characteristics/Solid content/Installation depth/Operating environment.

Our engineering team can provide professional selection assistance.

Engineering Support from Aote Tianjin Pump

JINAOTE Vertical Submersible Mining Pump delivers dependable performance for modern mining and industrial water management applications. With robust construction, efficient hydraulic performance, and flexible installation options, it provides a cost-effective solution for challenging drainage conditions.

As an experienced mining pump manufacturer, Aote Tianjin Pump Co., Ltd. is committed to supplying high-quality submersible pumping equipment and customized solutions for customers worldwide.
