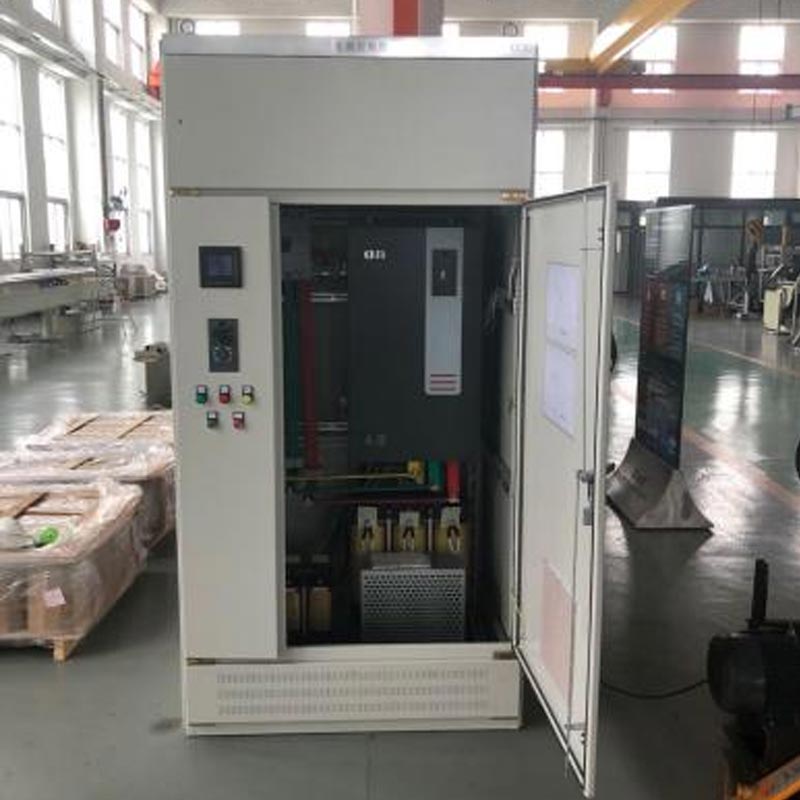

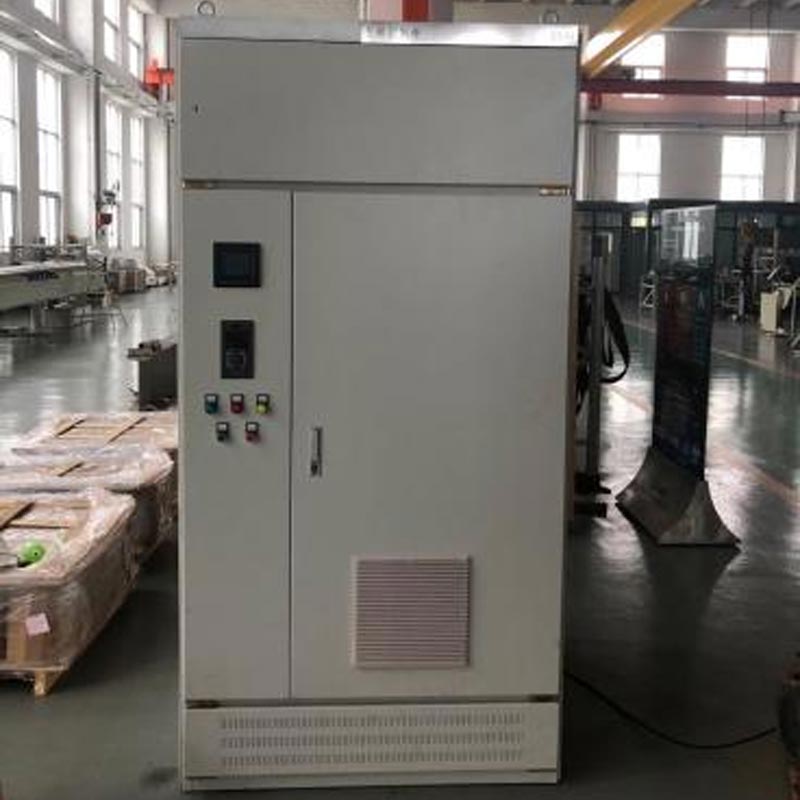

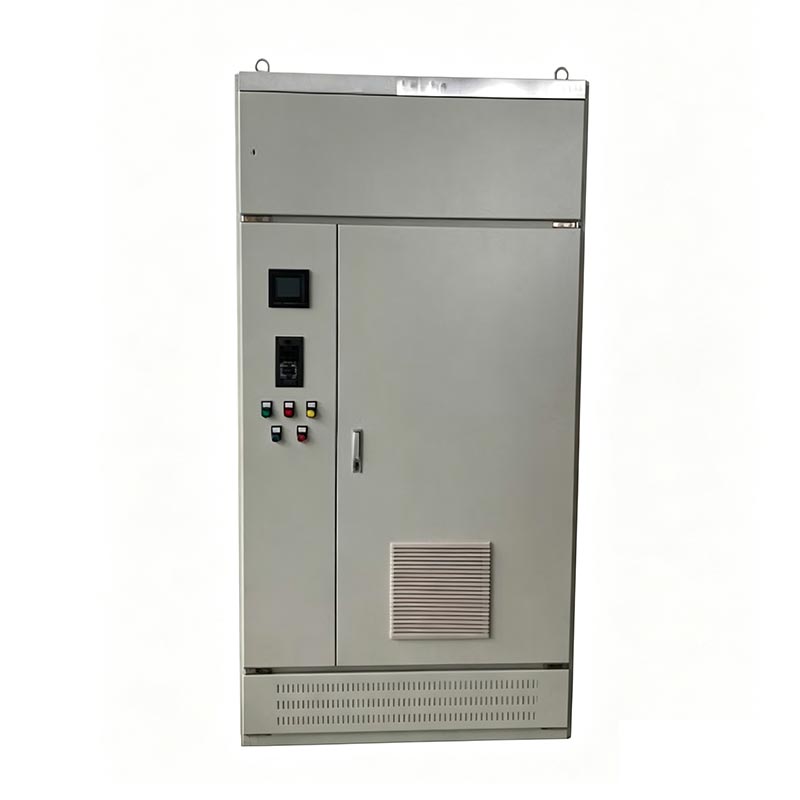

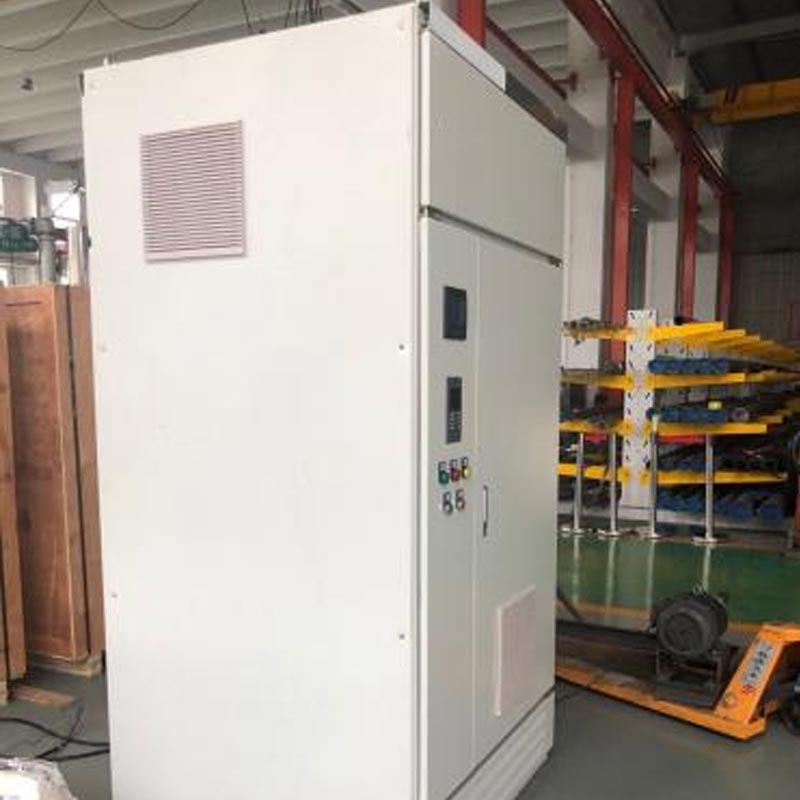

Variable Speed Drive Electrical Control Cabinet

The Variable Speed Drive Electrical Control Cabinet is the core control device for submersible pump systems. Unlike traditional fixed-speed control boxes, it can adjust pump speed freely and steplessly. It can match different water flow and pressure to fit changing well conditions and water volume. It works stably in oilfield water delivery, deep well water supply and river water intake projects, solving the problems of high power consumption and easy damage of traditional control equipment.

General Features

● Power Supply Voltage Protection
● Three-Phase Current Protection
● Overload Protection
● Underload Protection
● Under-Voltage Protection
● Delayed Start
● Delayed Shutdown
● Current Recording

Technical Specifications

Selection Guide

Choosing the correct Variable Speed Drive Electrical Control Cabinet depends on both the pump and the operating environment.

Information recommended before ordering:

● Pump model
● Motor power
● Rated voltage
● Rated current
● Required flow rate
● Required discharge pressure
● Installation environment
● Communication requirements

Excellent Performance and Structural Advantages

The Variable Speed Drive Electrical Control Cabinet uses high-quality electric parts and strong industrial sealed shells. It has good dustproof, waterproof and anti-interference performance, suitable for harsh outdoor and underground environments. Its built-in frequency conversion module works fast and accurately to adjust pump running speed in real time. This cabinet also has complete safety protection, including overload, overvoltage, undervoltage, short circuit and phase loss protection, to avoid equipment damage and ensure long-term stable pump operation.

Energy Saving and Practical Application Value

The Variable Speed Drive Electrical Control Cabinet has obvious energy-saving advantages. Traditional fixed-speed pumps waste much power when water demand is low. This cabinet adjusts operating power according to actual load, saving 20%-30% energy. It supports soft start and soft stop, avoiding sudden current impact and mechanical vibration. It reduces pump and pipeline wear, prolongs service life, and is widely used in oilfield, industrial, deep well and river water intake projects.

Why Choose Us

● Professional manufacturer specializing in ESP control systems
● Rich experience in oilfield and deep well applications
● Customized electrical design for different projects
● Stable frequency conversion technology
● Strict factory testing before shipment
● Complete technical documentation
● Fast engineering support
● Worldwide export experience
● Reliable after-sales service
● Long-term spare parts availability

FAQ

Q1: What equipment is the Variable Speed Drive Electrical Control Cabinet mainly used for?

A1: This Control Cabinet is special supporting equipment for all kinds of submersible pumps, such as high-temperature pumps, deep well pumps and river intake pumps. It fits oilfield water delivery, deep well water supply and river water intake projects.

Q2: What are the core advantages of frequency conversion control compared with traditional fixed-speed control?

A2: Compared with traditional fixed-speed control boxes, the product can adjust pump speed freely as needed. It saves more energy, reduces equipment wear with soft start, and has full safety protection, making pump operation more stable, safe and power-saving.

Q3: Can this control cabinet adapt to harsh outdoor working environments?

A3: Yes. It adopts sealed industrial shell and high-quality internal parts. It is dustproof, waterproof and anti-interference, and can work stably in humid, dusty and outdoor environments for oilfield, water well and river water intake projects.

Quality Control Standard

We follow strict quality control for every Variable Speed Drive Electrical Control Cabinet. Different from ordinary single-part inspection, all our cabinets are tested with matched submersible pump sets before delivery. Each equipment passes full running test, speed adjustment test and load simulation test. This real pump matching test ensures perfect coordination between the cabinet and the pump. All products are delivered only after passing the complete matching test, to guarantee stable and reliable field operation.

Why Choose Us

We have rich experience in developing and producing submersible pump control equipment. All Variable Speed Drive Electrical Control Cabinet products are strictly tested, with stable quality and low failure rate. We support customized parameters and functions to fit different pumps and working conditions. We provide complete pre-sales consultation, on-site guidance and after-sales maintenance services. Our products are sold worldwide, serving various oilfield, water well and river water intake projects with cost-effective and stable control solutions.
