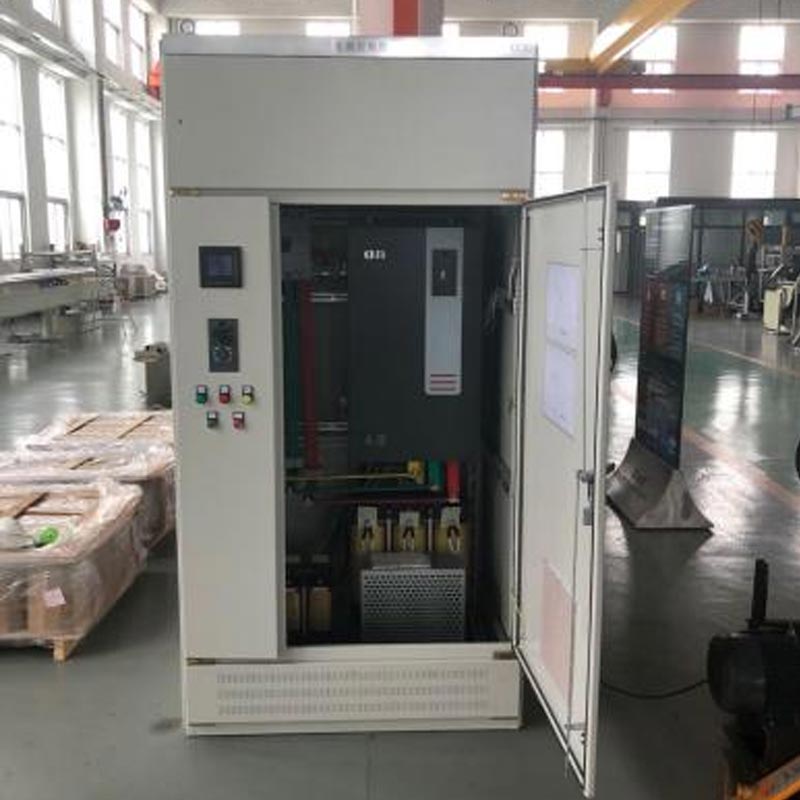

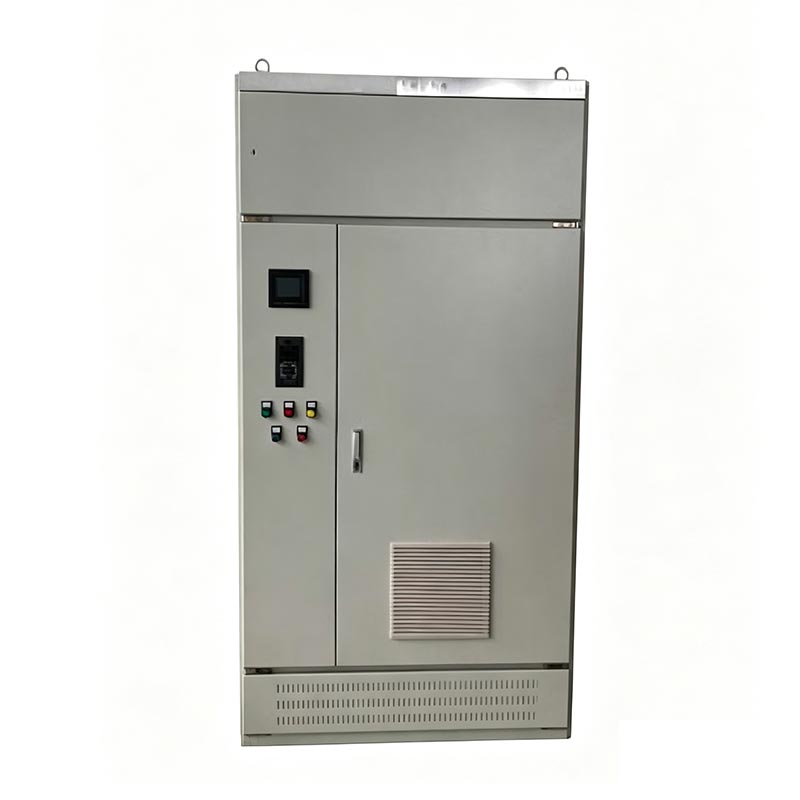

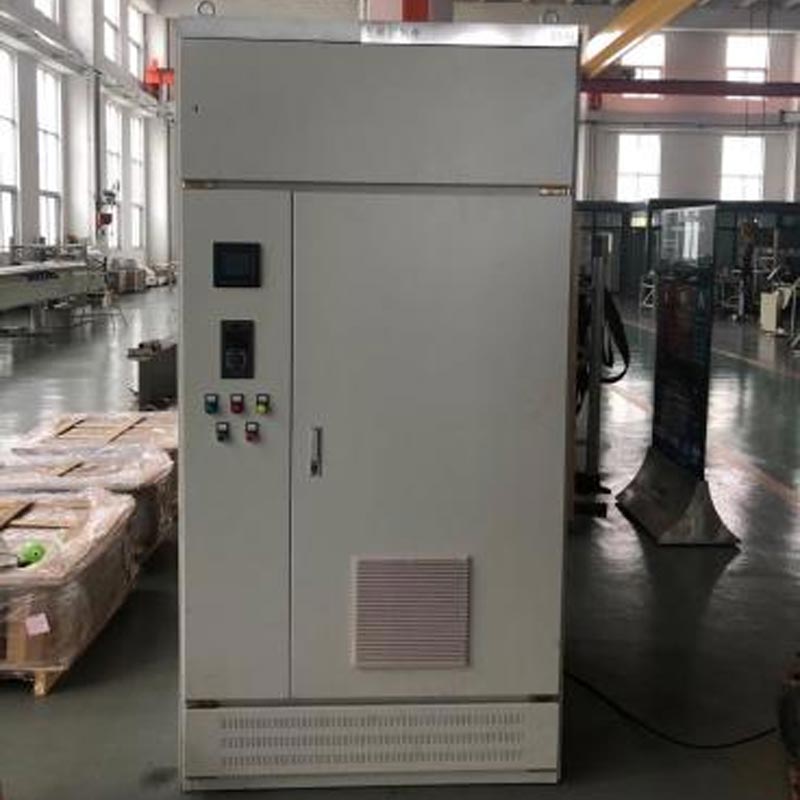

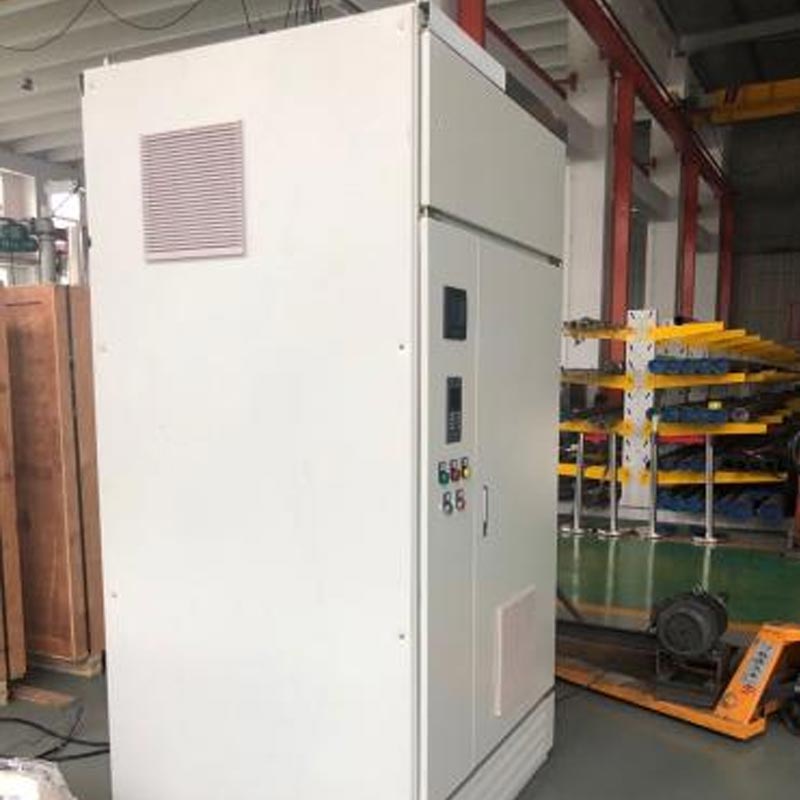

Soft Starter Electrical Control Cabinet

Soft Starter Electrical Control Cabinet is the core control device for submersible pump systems. Unlike traditional direct-start boxes that cause strong startup impact, it enables slow and smooth pump startup. It adapts to changing water flow, water pressure and well conditions, and works stably in oilfield water delivery, deep well water supply and river water intake projects. It effectively solves the problems of high failure rate and heavy loss of traditional pump control equipment.

Reliable Performance and Protection

It is built with high-quality electrical components and an industrial-grade enclosure for reliable operation in demanding environments. It provides smooth motor starting while reducing electrical and mechanical stress on pumps.

Standard protection functions include overload, overcurrent, overvoltage, undervoltage, phase failure, and short-circuit protection. With optional IP54 or IP55 protection, the cabinet is suitable for indoor and outdoor installations. PLC control, HMI, and remote communication can also be integrated to meet project requirements.

Lower Starting Impact and Operating Costs

Compared with traditional direct-on-line (DOL) starters, the Control Cabinet gradually increases motor voltage, reducing inrush current, hydraulic shock, and vibration during startup.

This helps protect motors, pumps, pipelines, and electrical systems, extending equipment service life while reducing maintenance costs. It is an economical solution for applications that require reliable motor starting without the higher investment of a variable frequency drive (VFD).

Typical Applications

The Soft Starter Electrical Control Cabinet is suitable for a wide range of submersible pump systems and water transfer projects. Typical applications include:

Oilfield water injection and transfer
Deep well water supply
River and lake water intake
Municipal water supply
Industrial water systems
Agricultural irrigation
Mining dewatering
Water conservancy pumping stations

The cabinet can be customized according to motor power, voltage, control requirements, and site conditions.

Selection Guide

When selecting a Soft Starter Electrical Control Cabinet, customers should consider the following factors:

Customization Options

Every pumping project has unique operating conditions. We offer flexible customization services to ensure the control cabinet integrates perfectly with the customer's pumping system.

Optional configurations include:

• PLC automatic control
• Touch screen HMI
• Remote monitoring
• GSM/4G communication
• SCADA integration
• Automatic water level control
• Pressure sensor control
• Flow meter integration
• Multi-pump alternation control
• Stainless steel cabinet
• Outdoor weatherproof cabinet
• Explosion-proof cabinet (optional)

FAQ

Q1: What is the Soft Starter Electrical Control Cabinet mainly used for?

A1: It is special supporting control equipment for all types of submersible pumps, such as high-temperature pumps, deep well pumps and river intake pumps, suitable for oilfield water delivery, deep well water supply and river water intake projects.

Q2: What are the advantages of soft start control compared with traditional direct start control?

A2: Different from traditional direct-start boxes, it realizes soft startup with no instant current impact. It reduces mechanical wear and failure rate. Multiple safety protections make pump operation safer and more stable.

Q3: Can this soft start control cabinet adapt to harsh working conditions?

A3: Yes. With sealed industrial shell and high-quality internal parts, it is dustproof, waterproof and anti-interference. It can work stably in humid, dusty and outdoor environments for oilfield, water well and river water intake projects.

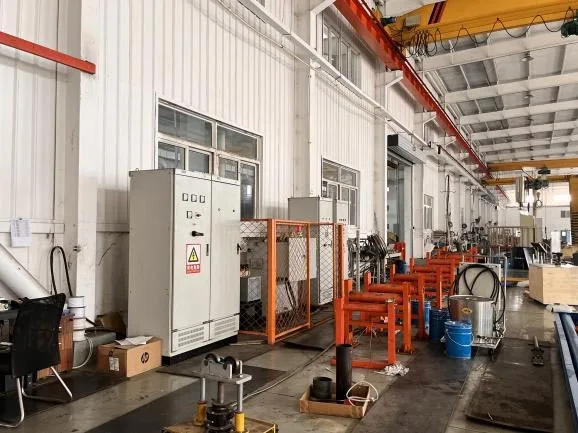

Factory Testing

Every control cabinet undergoes comprehensive factory testing before shipment to ensure reliable field performance.

Testing procedures include:
• Incoming material inspection
• Wiring inspection
• Electrical insulation test
• Soft start performance verification
• Functional operation test
• Protection function verification
• Simulated load testing
• Communication function testing (optional)
• 24-hour continuous operation test (optional)
• Final quality inspection before packing

Why Choose Us

We have rich experience in R&D and production of submersible pump control equipment. All products are strictly tested with stable quality and low failure rate. We support customized parameters and functions according to actual working conditions. We provide full-cycle services including pre-sales consultation, on-site guidance and after-sales maintenance. Our products are sold worldwide, providing reliable and cost-effective control solutions for various water lifting projects.
