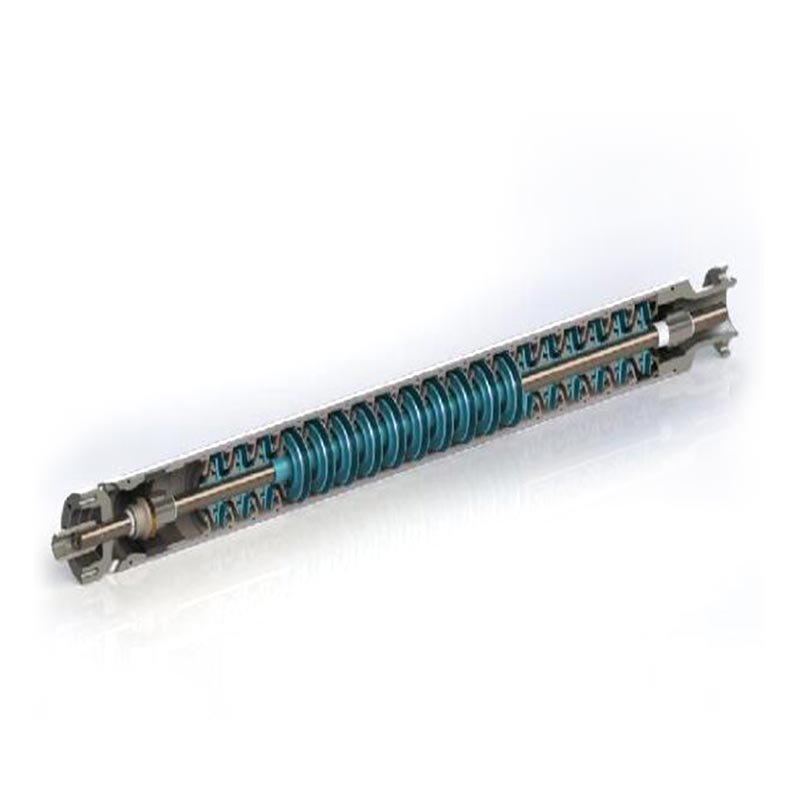

Submersible Geothermal Pump for Small Diameter Deep well

In geothermal drilling projects, limited casing diameter and deep underground conditions often create challenges for conventional submersible pumps. The Submersible Geothermal Pump for Small Diameter Deep well is specifically developed to provide reliable water extraction solutions in narrow boreholes where installation space is restricted.

With compact diameters from 3.38 inch to 6.75 inch, this pump series is compatible with small casing wells while maintaining efficient hydraulic performance and high lifting capability.

Compared with standard deep well pumps, this series focuses on:
• Maximum pumping capacity within limited well diameter
• Stable operation under high-temperature geothermal conditions
• Long service life in underground environments
• Reduced installation difficulty and maintenance requirements

It is widely used in geothermal heating systems, deep aquifer utilization, industrial groundwater supply, and renewable energy projects.

Product Identification Key

Equipment for 4.5 inch casing and larger

Equipment for 5.5 inch casing and larger

Equipment for 6 5/8 inch casing and larger

Equipment for 8 5/8 inch casing and larger

1.Engineered for Deep Well Precision

Built specifically for small diameter deep wells, this Submersible Geothermal Pump for Small Diameter Deep well integrates compact structural design with industrial-grade hydraulic efficiency. It fits narrow casings while maintaining powerful lifting capacity, making it ideal for geothermal systems, deep aquifer extraction, and specialized industrial water supply.

(1)Ultra-slim body for narrow bore compatibility
(2)High head performance for deep geothermal extraction
(3)Optimized hydraulic impeller design for stable flow output
(4)Resistant to thermal and pressure fluctuations underground

2.High-Temperature Geothermal Performance

Designed for geothermal applications, the pump operates reliably in high-temperature underground conditions, ensuring uninterrupted water circulation from deep geothermal reservoirs.

(1)Heat-resistant motor system for continuous operation
(2)Stable performance under elevated thermal loads
(3)Enhanced sealing system prevents thermal leakage
(4)Suitable for geothermal heating and energy systems

3.Durable Construction for Extreme Conditions

Every component is engineered for longevity in harsh subsurface environments, reducing maintenance frequency and maximizing operational uptime.

(1)Corrosion-resistant stainless steel housing
(2)Anti-sediment impeller structure for clean operation
(3)Reinforced motor insulation for extended lifespan
(4)Heavy-duty shaft design for deep pressure resistance

4.Optimized Energy Efficiency

Reduce operational costs while maintaining high output performance. The pump is designed to deliver maximum efficiency with minimal energy consumption.

(1)High-efficiency motor reduces power usage
(2)Smooth hydraulic flow minimizes energy loss
(3)Intelligent balance between pressure and flow rate
(4)Ideal for continuous industrial operation

5.Wide Application Range

This geothermal pump is suitable for multiple demanding environments where reliability and depth reach are critical.

(1)Geothermal heating systems
(2)Deep well water extraction projects
(3)Industrial groundwater supply
(4)Agricultural irrigation from deep aquifers
(5)Scientific geothermal exploration

Why Choose AOTE Small Diameter Geothermal Pump?

Compared with conventional deep well pumps, AOTE focuses on geothermal-specific requirements:

✓ Small diameter structure for restricted well conditions
✓ Complete pump-motor-protector matching system
✓ Suitable for high-temperature underground environments
✓ Customized solutions based on well parameters
✓ Long-term continuous operation capability
✓ Experience in geothermal and deep well pumping applications

FAQ

Q1: What is a Submersible Geothermal Pump for Small Diameter Deep well used for?

A small diameter geothermal pump is designed for extracting hot underground water from geothermal wells with limited casing space. It is commonly used in geothermal heating, industrial water supply, and renewable energy projects.

Q2: Why use a small diameter pump instead of a standard deep well pump?

Small diameter pumps are designed for wells where casing size is restricted. They provide reliable water extraction performance while fitting into narrow boreholes that cannot accommodate standard pumps.

Q3: Can this pump work in high temperature geothermal wells?

Yes. The pump can be customized with heat-resistant motor insulation, sealing systems, and materials according to geothermal temperature requirements.

Q4: How do I select the correct geothermal pump model?

Selection depends on well casing diameter, well depth, required flow rate, lifting height, water temperature, and geothermal water quality. AOTE can provide a complete pump system recommendation.
