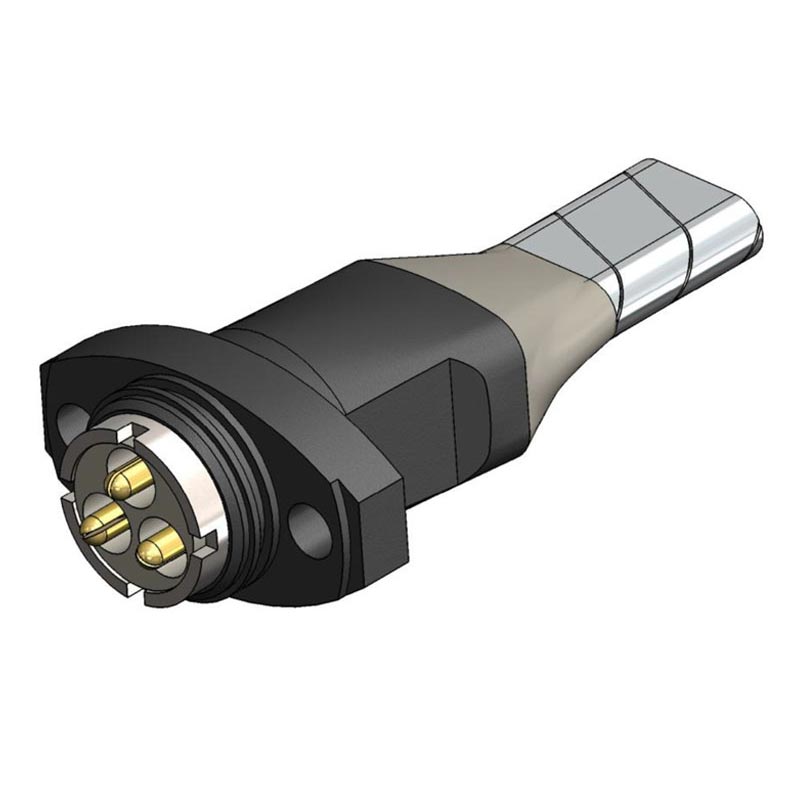

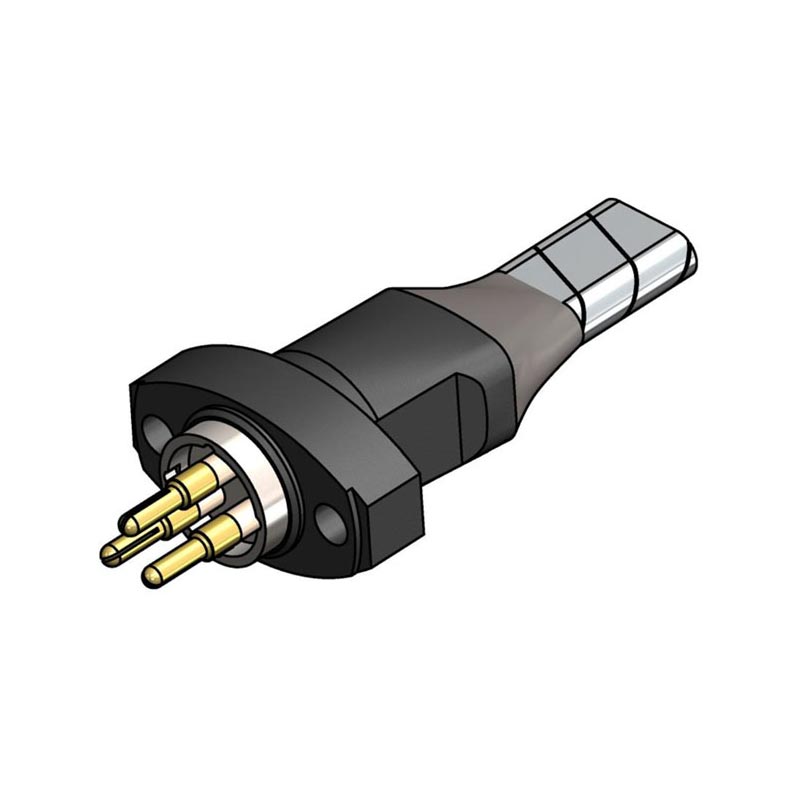

armored MLE Cable

Product Overview Oilfield equipment typically operates in environments where cables are susceptible to vibration, dragging, impact, and oil contamination. Under these conditions, conventional flat cables can wear out quickly, while round armored cables are difficult to install in space-constrained situations.

The development of armored MLE cables aims to address both of these issues.
Their flat structure optimizes cable layout within confined equipment bays, while the integrated metal armor provides additional protection against external mechanical damage without significantly increasing cable thickness. The armored cable, combining flexibility and mechanical strength, can withstand frequent movement while maintaining stable electrical performance.

Typical applications include logging trucks, wireline logging systems, wellhead control equipment, underground cable trenches, mobile skid-mounted units, and offshore support equipment, all requiring a balance of flexibility and durability.

The design goal of armored MLE cables is not merely to increase mechanical strength, but to reduce unexpected downtime due to cable damage, thereby helping operators reduce maintenance costs and extend maintenance intervals.

Material & Manufacturing

Armored MLE cables utilize high-purity tin-plated stranded copper conductors, offering excellent flexibility, and are coupled with a uniform, oil-resistant XLPE insulation layer to ensure stable core separation.

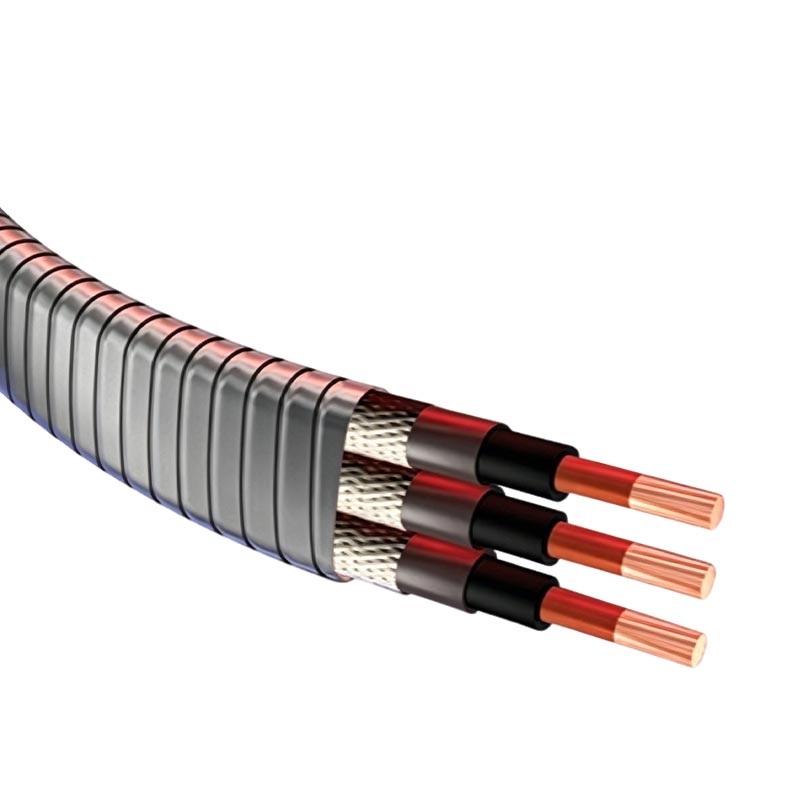

The inner sheath is encased in an interlocking galvanized steel tape armor, forming a robust mechanical protection layer; the outer sheath is made of oil- and corrosion-resistant TPU composite material, resistant to the erosion of crude oil, salt water, and fracturing fluid.

The entire production process employs automated flat cable and continuous armored production lines to ensure consistency in the internal structure. As a leading armored MLE cable supplier in China, every batch of high-quality product cables undergoes full-process inspection, and commonly used models are readily available.

Core Advantages

1. Ultra-flat and mini design, suitable for narrow wellhead gaps and logging equipment cable chains;
2. Built-in metal armor provides strong resistance to pressure, scratches, and rodents, suitable for shallow oilfields and heavy-duty well environments;
3. Highly flexible stranded structure with a small bending radius, capable of withstanding millions of reciprocating drag cycles without conductor breakage, suitable for mobile logging tools;
4. Excellent oil and chemical corrosion resistance; the armor provides auxiliary electromagnetic shielding, preventing signal interference in complex oilfield electromagnetic environments. Our armored MLE cables have a service life far exceeding that of ordinary unarmored flat cables.

Why do these cables perform better in oilfield applications?

Choosing armored cables isn't just about mechanical protection. In oilfield environments, long-term reliability depends on the cable's performance after thousands of operating cycles, not its appearance when brand new.

The flat conductor arrangement distributes stress more evenly during repeated bending, reducing fatigue in individual conductors. Interlocking armor absorbs external shocks while maintaining sufficient flexibility to accommodate moving equipment. This balance between protection and flexibility helps reduce conductor breakage, sheath cracking, and premature replacement.

For applications requiring frequent moving equipment, cable chain movement, or temporary field installations, armored MLE cables offer longer maintenance intervals than many conventional armored cables.

Applications

Armored MLE cables are widely used in applications requiring compact cabling and high mechanical protection.

Typical applications include:
Well logging equipment
Cable logging vehicles
Wellhead control systems
Hydraulic fracturing units
Oilfield automation equipment
Mobile drilling platforms
Underground cable trenches
Drag chain systems
Offshore support equipment
Temporary field power distribution
Portable instrument systems
Industrial automation requiring flexible armored cables

Selection Guide

Choosing the right armored MLE cable is not as simple as just selecting the cable size. Installation conditions, electrical requirements, mechanical movement, and environmental exposure all affect its long-term performance.

Factory Testing and Quality Control

Every Armored MLE is manufactured under controlled production processes and inspected before shipment to ensure consistent electrical and mechanical performance for demanding oilfield applications.

Standard Factory Tests

Production Quality Control

Quality control is integrated throughout the manufacturing process, including raw material verification, conductor stranding, insulation extrusion, armor application and final inspection. Key production parameters are continuously monitored to ensure stable product quality and dimensional consistency.

Test Reports Available

Supporting documents can be provided upon request, including:
Factory Test Report (FTR)
Certificate of Conformance (COC)
Material Certificates
Packing List and Commercial Invoice
Certificate of Origin (if required)
Each production batch is traceable from raw materials to final inspection, helping customers meet project quality and documentation requirements.

FAQ

Q1: What oilfield applications is Armored MLE cable suitable for?

A1: It is mainly designed for demanding oilfield applications, including well logging systems, wellhead automation equipment, drag chains, underground narrow trench installation, and mobile fracturing control units. Its flexible structure and mechanical protection make it suitable for environments where cables are exposed to frequent movement, impact, and harsh outdoor conditions.

Q2: What advantages does the armor layer provide for oilfield cable applications?

A2: The interlocked steel tape armor layer provides additional mechanical protection against crushing, impact, abrasion, and rodent damage. Compared with conventional flat cables, Armored MLE cable offers improved durability in exposed oilfield environments where cables may experience physical stress during installation and operation.

Q3: Can Armored MLE withstand repeated bending and continuous movement?

A3: Yes. The cable is designed for dynamic working conditions. The use of fine stranded copper conductors, flexible insulation materials, and oil-resistant outer jackets allows the cable to maintain electrical performance during repeated bending, dragging, and reciprocating movement commonly found in logging and mobile oilfield equipment.

Q4: Can Armored MLE be customized according to specific oilfield requirements?

A4: Yes. We can provide customized solutions based on different application requirements, including conductor size, core number, cable length, jacket material, voltage rating, and environmental protection requirements. Our engineering team can help select the suitable cable structure for specific oilfield operating conditions.
